Room Air Conditioner
New Model Search:

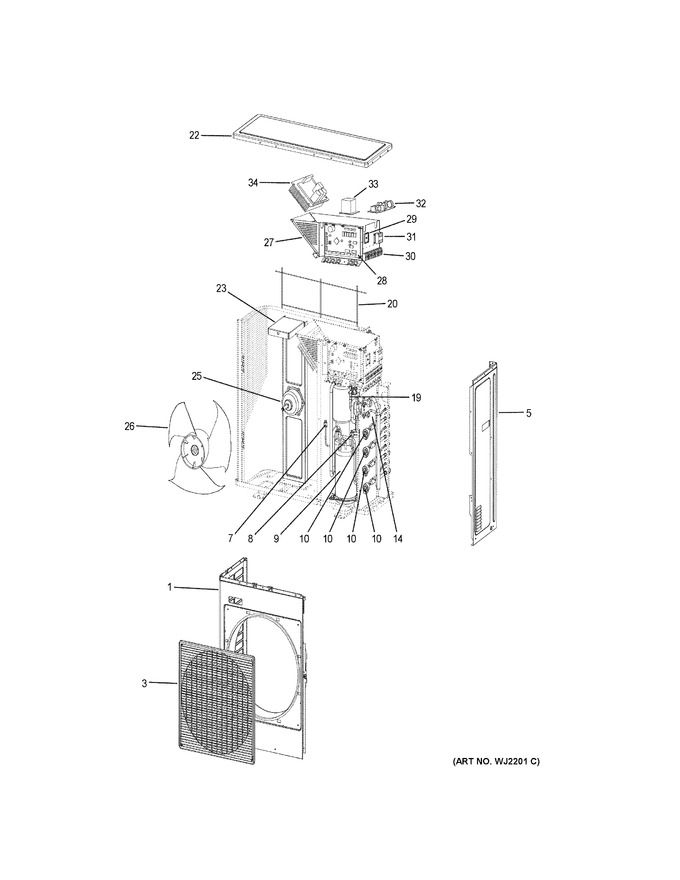

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23743 | Casing |
|
- | |||||
| 3 | WJ71X23738 | Outlet Grille |
|
- | |||||
| 5 | WJ71X23737 | Right Side Panel |
|
- | |||||
| 7 | WJ26X23722 | Low Pressure Switch |
|
- | |||||
| 8 | WJ27X22646 | High Pressure Switch |
|
- | |||||
| 9 | WJ98X23735 | Compressor |
|
- | |||||
| 10 | WJ26X22674 | Levb Electronic Expansion Valve |
|
- | |||||
| 14 | WJ53X23724 | Electronic Expansion Valve |
|
- | |||||
| 19 | WJ53X23567 | 4-way Stop Valve |
|
- | |||||
| 20 | WJ71X23741 | Rear Grille |
|
- | |||||
| 22 | WJ71X23732 | Top Panel |
|
$ 70.68 | |||||
| 23 | WJ65X23733 | Outdoor Fan Motor Bracket |
|
- | |||||
| 25 | WJ94X23740 | Outdoor Fan Motor |
|
- | |||||
| 26 | WJ73X23742 | Outdoor Fan Blade |
|
- | |||||
| 27 | WJ26X23739 | Electrical Box |
|
- | |||||
| 28 | WJ26X23715 | Outdoor Power Control Board |
|
$ 567.01 | |||||
| 29 | WJ26X23716 | Service Power Control Board |
|
- | |||||
| 30 | WJ26X23730 | Terminal Block |
|
- | |||||
| 31 | WJ27X23566 | Terminal Block For Power Supply |
|
- | |||||
| 32 | WJ26X23717 | Filter Power Control Board |
|
$ 381.44 | |||||
| 33 | WJ26X23734 | Reactor |
|
- | |||||
| 34 | WJ26X23736 | Inverter Driver Module |
|
$ 1,358.68 | |||||
| 36 | WJ96X24081 | Square Inverter Board W/o Capacitors |
|
- |
