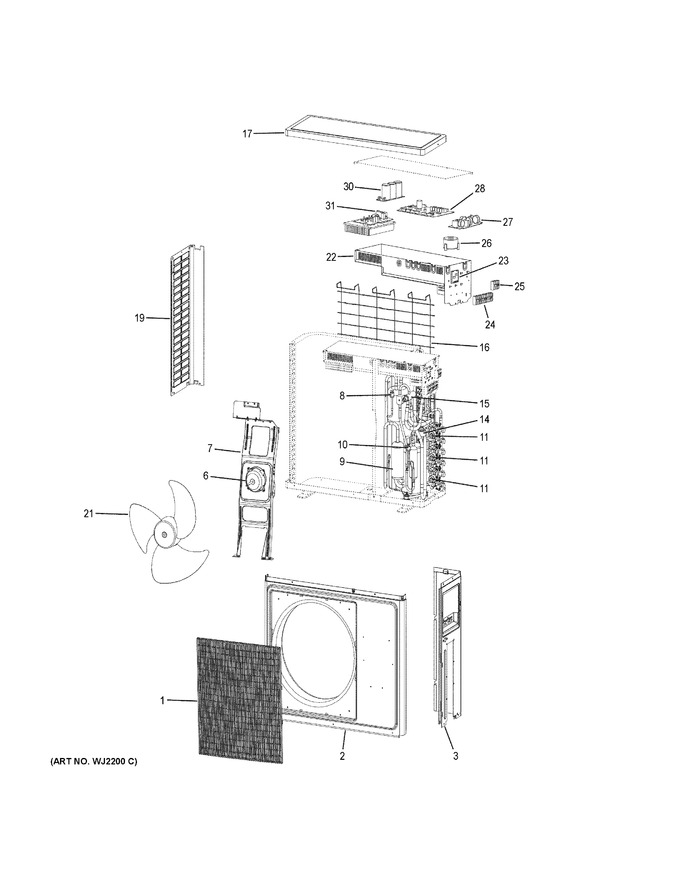

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23725 | Outlet Grille |
|
- | |||||
| 1 | WJ71X24782 | Grille |
|
- | |||||
| 2 | WJ71X23714 | Casing |
|
- | |||||
| 3 | WJ71X23720 | Right Side Panel |
|
- | |||||
| 4 | WJ76X24366 | Terminal Block Guard |
|
- | |||||
| 5 | WJ76X24365 | Valve Cover |
|
- | |||||
| 6 | WJ94X23718 | Outdoor Fan Motor |
|
- | |||||
| 7 | WJ65X23712 | Outdoor Fan Motor Bracket |
|
- | |||||
| 8 | WJ26X23722 | Low Pressure Switch |
|
- | |||||
| 9 | WJ98X23731 | Compressor |
|
- | |||||
| 10 | WJ27X22646 | High Pressure Switch |
|
- | |||||
| 11 | WJ26X24364 | E.e.v-a Coil |
|
- | |||||
| 11 | WJ26X22674 | Levb Electronic Expansion Valve |
|
- | |||||
| 12 | WJ26X24364 | Eev Coil |
|
- | |||||
| 12 | WJ26X25034 | E.e.v-b Coil |
|
- | |||||
| 13 | WJ26X26194 | E.e.v-c Coil |
|
- | |||||
| 14 | WJ53X23724 | Electronic Expansion Valve |
|
- | |||||
| 15 | WJ53X23567 | 4-way Stop Valve |
|
- | |||||
| 16 | WJ71X23711 | Rear Grille |
|
- | |||||
| 17 | WJ71X23723 | Top Panel |
|
- | |||||
| 18 | WJ26X22674 | Expansion Valve Body |
|
- | |||||
| 19 | WJ71X23713 | Left Side Panel |
|
- | |||||
| 20 | WJ88X29545 | Condenser Assy |
|
- | |||||
| 21 | WJ73X23728 | Outdoor Fan Blade |
|
$ 68.62 | |||||
| 22 | WJ26X23726 | Electrical Box |
|
- | |||||
| 23 | WJ26X23716 | Service Power Control Board |
|
- | |||||
| 24 | WJ26X23730 | Terminal Block |
|
- | |||||
| 25 | WJ26X23729 | Terminal Block |
|
- | |||||
| 26 | WJ26X23727 | Reactor |
|
- | |||||
| 27 | WJ26X23717 | Filter Power Control Board |
|
$ 381.44 | |||||
| 28 | WJ26X23715 | Outdoor Power Control Board |
|
$ 567.01 | |||||
| 30 | WJ20X23721 | Capacitor Power Control Board |
|
- | |||||
| 31 | WJ26X23719 | Inverter Driver Module |
|
- | |||||
| 32 | WJ96X24080 | Rectangular Inverter Board |
|
- | |||||
| 33 | WJ53X24973 | Liquid Service Valve |
|
- | |||||
| 34 | WJ53X24974 | Vapor Service Valve |
|
- | |||||
| 42 | WJ26X24077 | Liquid Pipe Sensor Assy.(tc2)a,b,c |
|
- | |||||
| 43 | WJ26X24078 | Outdoor Sensor Set |
|
- | |||||
| 44 | WJ26X22537 | Gas Pipe Sensor Assy.(tc1)a,b,c |
|
- | |||||
| 51 | WJ35X29453 | Wiring Harness Assembly |
|
- | |||||
| 52 | WJ27X36913 | Crankcase Heater |
|
- | |||||
| 91 | WJ26X22636 | Defrost/toci Sensor |
|
- | |||||
| 9999 | 31-5000001 | Pm Install Instructions |
|
- |
