Room Air Conditioner
New Model Search:

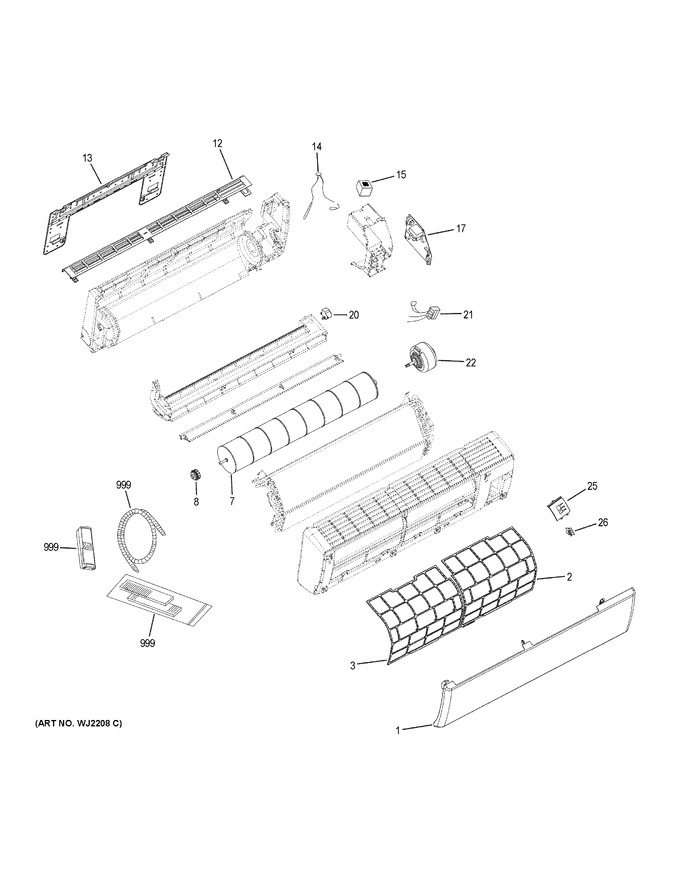

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23791 | Top Panel |
|
- | |||||
| 2 | WJ85X23270 | Air Filter |
|
$ 15.62 | |||||
| 3 | WJ85X23271 | Air Filter |
|
$ 9.27 | |||||
| 7 | WJ73X23290 | Cross Flow Fan |
|
$ 40.00 | |||||
| 8 | WJ73X23304 | Fan Bearing |
|
Immediately | $ 2.16 | ||||
| 12 | WJ71X23315 | Grille |
|
- | |||||
| 13 | WJ65X23038 | Rear Bracket |
|
$ 15.30 | |||||
| 14 | WJ26X23344 | Sensor |
|
- | |||||
| 15 | WJ27X23358 | Transformer |
|
- | |||||
| 17 | WJ26X23319 | Indoor Power Control Board |
|
$ 112.67 | |||||
| 20 | WJ94X23345 | Stepper Motor |
|
$ 15.30 | |||||
| 21 | WJ26X23043 | Terminal Block |
|
- | |||||
| 22 | WJ94X23316 | Indoor Motor |
|
$ 82.14 | |||||
| 25 | WJ26X23790 | Display Panel |
|
- | |||||
| 26 | WJ26X23341 | Receiver Power Control Board |
|
- | |||||
| 999 | WJ01X23311 | Air Purification Filter |
|
- | |||||
| 999 | WJ53X23032 | Drain Hose |
|
$ 6.41 | |||||
| 999 | WJ01X23342 | Yr-hd |
|
$ 46.92 |
