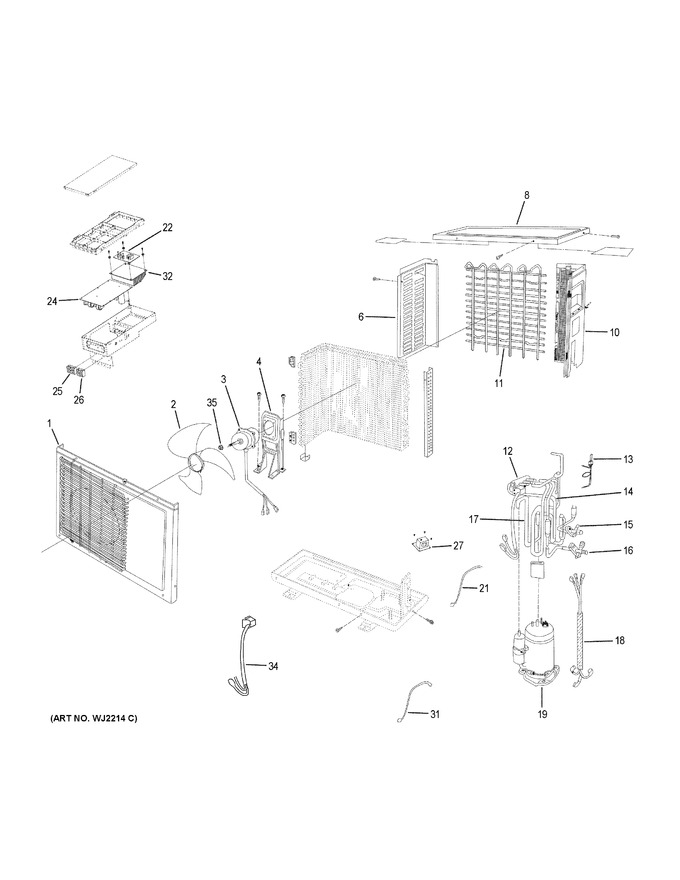

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X23795		Casing		Appelez-nous	-
2	WJ73X23305		Fan Blade		Appelez-nous	-
3	WJ94X23327		Outdoor Fan Motor				$ 196.23
4	WJ65X23310		Fan Motor Bracket		Appelez-nous	-
6	WJ71X23696		Left Side Panel		Appelez-nous	-
8	WJ71X23357		Top Panel		Appelez-nous	-
10	WJ71X23699		Right Side Panel		Appelez-nous	-
11	WJ71X23339		Rear Grille		Appelez-nous	-
12	WJ53X22987		4-way Valve		Appelez-nous	-
13	WJ53X22996		Electronic Expansion Valve		Appelez-nous	-
14	WJ53X23295		Discharge Tube		Appelez-nous	-
15	WJ53X22991		2-way Stop Valve		Appelez-nous	-
16	WJ53X22992		3-way Valve		Appelez-nous	-
17	WJ53X23348		Suction Tube		Appelez-nous	-
18	WJ35X23003		Outdoor Wire Harness		Appelez-nous	-
19	WJ98X23285		Compressor		Appelez-nous	-
21	WJ26X23009		Temperature Sensor				$ 22.15
22	WJ26X23002		Outdoor Module		Appelez-nous	-
24	WJ26X23698		Outdoor Power Control Board		Appelez-nous	-
25	WJ27X23010		Terminal Block		Appelez-nous	-
26	WJ27X23011		Terminal Block		Appelez-nous	-
27	WJ27X23006		Reactor		Appelez-nous	-
31	WJ26X23794		Temperature Sensor		Appelez-nous	-
32	WJ27X23337		Radiator		Appelez-nous	-
34	WJ35X22997		Electronic Expansion Valve Coil		Appelez-nous	-
35	WJ01X23312		Flange Nut				$ 8.88
