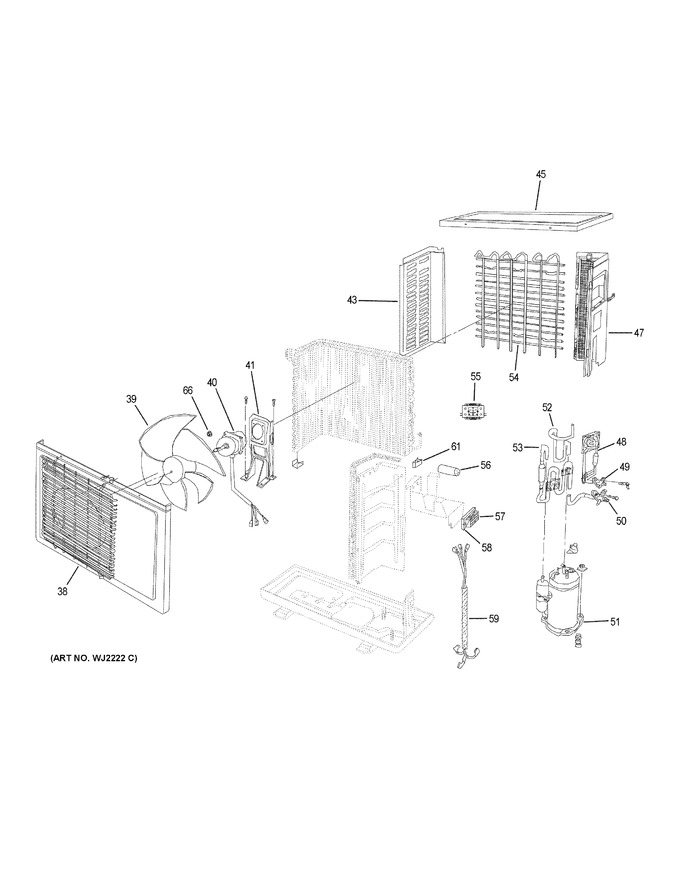

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
38	WJ76X23281		Casing		Appelez-nous	-
39	WJ73X23306		Fan Blade				$ 55.09
40	WJ94X23521		Outdoor Fan Motor				$ 205.11
41	WJ65X23529		Outdoor Fan Motor Bracket		Appelez-nous	-
43	WJ71X23323		Left Side Panel		Appelez-nous	-
45	WJ71X23522		Top Panel		Appelez-nous	-
47	WJ71X23525		Right Side Panel		Appelez-nous	-
48	WJ53X23533		Capillary Tube		Appelez-nous	-
49	WJ53X22991		2-way Stop Valve		Appelez-nous	-
50	WJ53X22992		3-way Valve		Appelez-nous	-
51	WJ98X23524		Compressor				$ 675.00
52	WJ53X23523		Discharge Tube		Appelez-nous	-
53	WJ53X23531		Suction Tube		Appelez-nous	-
54	WJ71X23340		Rear Grille		Appelez-nous	-
55	WJ26X23527		Ace Contactor				$ 45.50
56	WJ20X23526		Compressor Capacitor		Appelez-nous	-
57	WJ26X23520		Terminal Block		Appelez-nous	-
58	WJ26X23528		Terminal Block		Appelez-nous	-
59	WJ35X23532		Wiring Harness				$ 29.14
61	WJ20X23530		Outdoor Fan Motor Capacitor				$ 9.60
66	WJ01X22974		Flange Nut		Appelez-nous	-
