Room Air Conditioner
New Model Search:

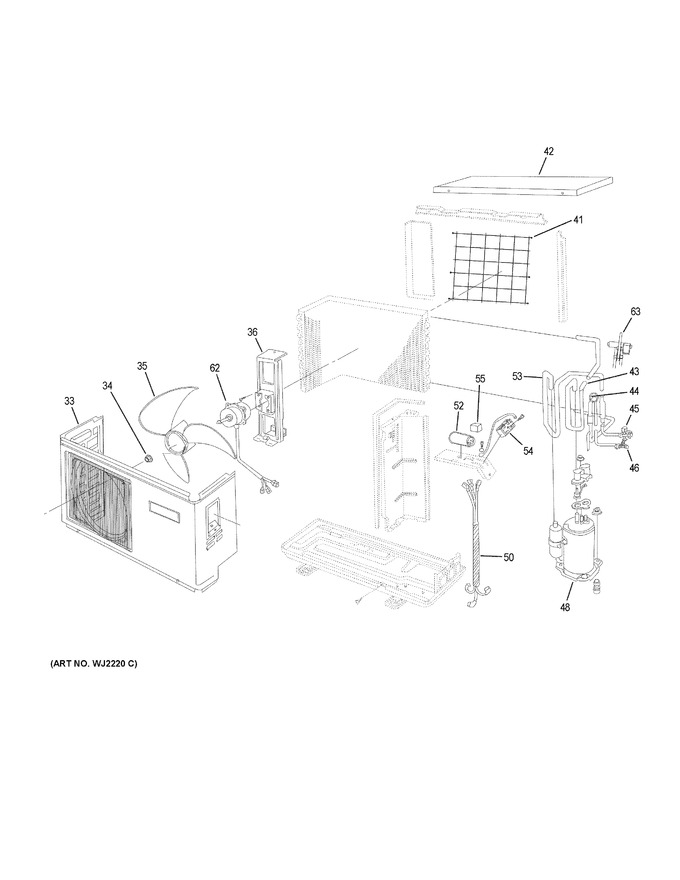

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 33 | WJ76X23282 | Casing |
|
- | |||||
| 34 | WJ01X23150 | Flange Nut |
|
$ 1.77 | |||||
| 35 | WJ73X22973 | Fan Blade |
|
- | |||||
| 36 | WJ65X23307 | Fan Motor Bracket |
|
- | |||||
| 41 | WJ71X23514 | Rear Guard Net |
|
- | |||||
| 42 | WJ76X23200 | Top Cover |
|
$ 55.96 | |||||
| 43 | WJ53X23512 | Discharge Tube |
|
- | |||||
| 44 | WJ53X23513 | Capillary |
|
- | |||||
| 45 | WJ53X22992 | 3-way Valve |
|
- | |||||
| 46 | WJ53X22991 | 2-way Stop Valve |
|
- | |||||
| 48 | WJ98X23507 | Compressor |
|
$ 453.86 | |||||
| 50 | WJ35X23485 | Outdoor Wire Harness |
|
$ 32.68 | |||||
| 52 | WJ20X23487 | Compressor Capacitor |
|
- | |||||
| 53 | WJ53X23515 | Suction Tube |
|
- | |||||
| 54 | WJ71X23480 | Terminal Cover |
|
- | |||||
| 55 | WJ20X23482 | Motor Capacitor |
|
- | |||||
| 62 | WJ94X23486 | Outdoor Fan Motor |
|
$ 160.17 | |||||
| 63 | WJ53X23494 | 4-way Valve |
|
- |
