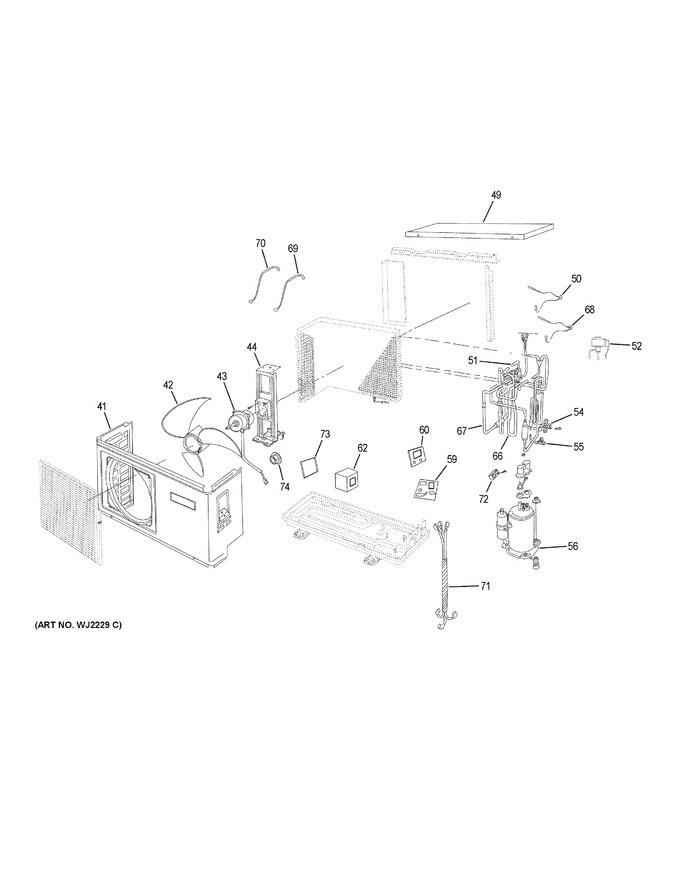

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
41	WJ76X23478		Casing		Appelez-nous	-
42	WJ73X23190		Fan Blade				$ 24.18
43	WJ94X22975		Outdoor Fan Motor			Immediately	$ 180.78
44	WJ65X23207		Outdoor Fan Motor Bracket		Appelez-nous	-
49	WJ76X23200		Top Cover				$ 55.96
50	WJ26X23334		Pipe Sensor				$ 9.27
51	WJ53X22967		4-way Valve		Appelez-nous	-
52	WJ53X23303		Electronic Expansion Valve		Appelez-nous	-
54	WJ53X23143		3-way Valve				$ 31.30
55	WJ53X22991		2-way Stop Valve		Appelez-nous	-
56	WJ98X23284		Compressor				$ 540.70
59	WJ26X23610		Outdoor Power Control Board				$ 370.39
60	WJ26X23335		Power Module Board		Appelez-nous	-
62	WJ27X22981		Reactor		Appelez-nous	-
66	WJ53X23297		Discharge Tube		Appelez-nous	-
67	WJ53X23350		Suction Tube		Appelez-nous	-
68	WJ26X23286		Compressor Temperature Sensor				$ 11.04
69	WJ26X23346		Suction Temperature Sensor		Appelez-nous	-
70	WJ26X23278		Ambient Temperature Sensor				$ 9.60
71	WJ35X23332		Outdoor Wiring Harness		Appelez-nous	-
72	WJ27X22985		Terminal Block		Appelez-nous	-
73	WJ26X23195		Radiator		Appelez-nous	-
74	WJ01X23150		Flange Nut				$ 1.77
