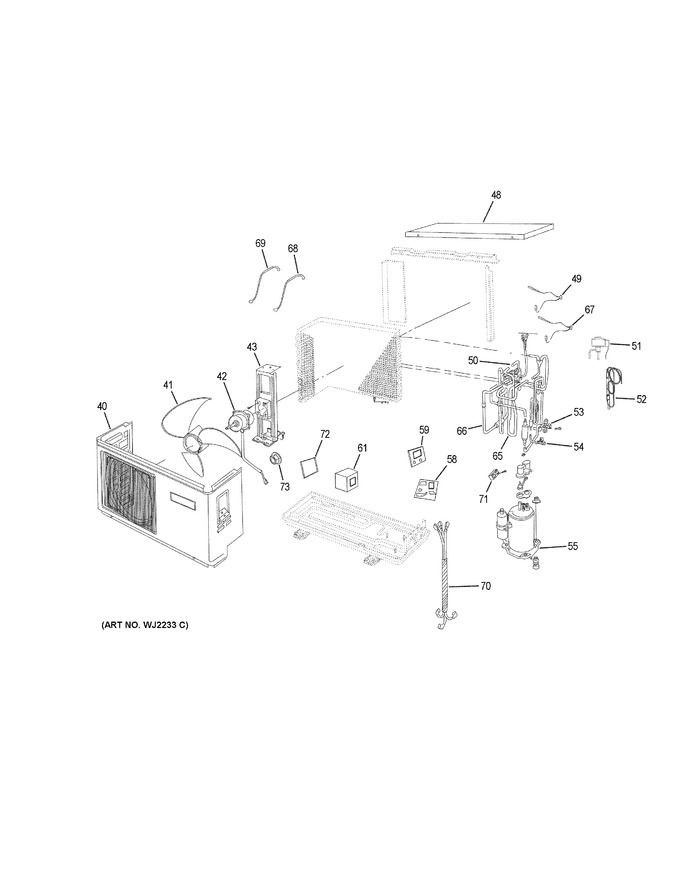

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
40	WJ71X23506		Casing		Appelez-nous	-
41	WJ73X23614		Outdoor Fan Blade				$ 32.68
42	WJ94X22975		Outdoor Fan Motor			Immediately	$ 180.78
43	WJ65X23625		Outdoor Fan Motor Bracket		Appelez-nous	-
48	WJ76X23200		Top Cover				$ 55.96
49	WJ26X23334		Pipe Sensor				$ 9.27
50	WJ53X22987		4-way Valve		Appelez-nous	-
51	WJ53X23303		Electronic Expansion Valve		Appelez-nous	-
52	WJ53X23623		Capillary Tube		Appelez-nous	-
53	WJ53X22992		3-way Valve		Appelez-nous	-
54	WJ53X22991		2-way Stop Valve		Appelez-nous	-
55	WJ98X23285		Compressor		Appelez-nous	-
58	WJ26X23626		Outdoor Power Control Board				$ 393.78
59	WJ26X23627		Power Module Board				$ 236.88
61	WJ27X22981		Reactor		Appelez-nous	-
65	WJ53X23624		Discharge Tube		Appelez-nous	-
66	WJ53X23628		Suction Tube		Appelez-nous	-
67	WJ26X23286		Compressor Temperature Sensor				$ 11.04
68	WJ26X23278		Ambient Temperature Sensor				$ 9.60
69	WJ26X23346		Suction Temperature Sensor		Appelez-nous	-
70	WJ35X23332		Outdoor Wiring Harness		Appelez-nous	-
71	WJ27X22985		Terminal Block		Appelez-nous	-
72	WJ26X23195		Radiator		Appelez-nous	-
73	WJ01X23150		Flange Nut				$ 1.77
