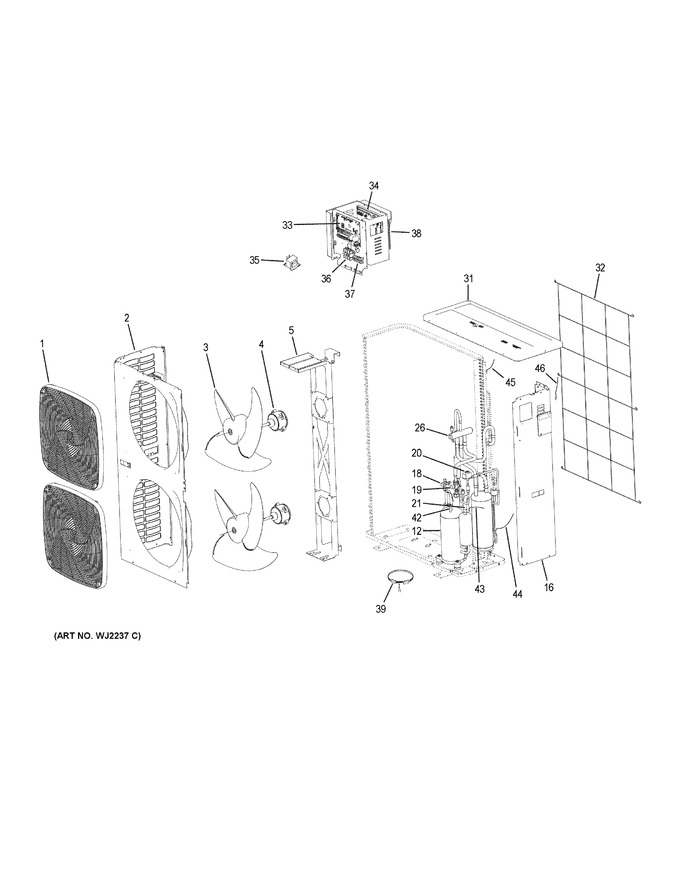

SELECT A DIAGRAM

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X23589		Outlet Grill		Appelez-nous	-
2	WJ71X23564		Panel		Appelez-nous	-
3	WJ73X22642		Fan Blade		Appelez-nous	-
4	WJ94X23582		Motor				$ 889.11
5	WJ65X23587		Motor Bracket		Appelez-nous	-
7	WJ76X24388		Access Panel		Appelez-nous	-
8	WJ76X24389		Front Passthrough Panel		Appelez-nous	-
12	WJ98X22670		Compressor		Appelez-nous	-
15	WJ76X24390		Rear Passthrough Panel		Appelez-nous	-
16	WJ71X23565		Side Plate Right		Appelez-nous	-
17	WJ76X24387		Diagnostic Board Cover		Appelez-nous	-
18	WJ53X22650		Liquid Line Service Valve		Appelez-nous	-
19	WJ53X23555		Stop Valve (gas Side)		Appelez-nous	-
20	WJ26X22560		Electronic Expansion Valve		Appelez-nous	-
21	WJ53X23591		Suction Tube		Appelez-nous	-
26	WJ53X23568		4-way Stop Valve		Appelez-nous	-
26	WJ53X22661		Reversing Valve Body		Appelez-nous	-
27	WJ27X22646		High Pressure Switch		Appelez-nous	-
28	WJ27X22646		High Pressure Switch		Appelez-nous	-
29	WJ26X23722		Low Pressure Switch		Appelez-nous	-
31	WJ76X23571		Top Cover		Appelez-nous	-
32	WJ76X22634		Condsending Coil Guard		Appelez-nous	-
33	WJ26X23573		Power Control Board		Appelez-nous	-
34	WJ26X23583		Driver Module		Appelez-nous	-
34	WJ26X25353		Drive Module		Appelez-nous	-
35	WJ27X23553		Reactor		Appelez-nous	-
36	WJ27X23566		Terminal Block For Power Supply		Appelez-nous	-
37	WJ26X23179		Terminal Block		Appelez-nous	-
38	WJ53X23551		Electronic Control Valve		Appelez-nous	-
39	WJ27X22685		Sump Heater		Appelez-nous	-
42	WJ26X22637		Discharge Temperature Sensor		Appelez-nous	-
43	WJ26X22667		Suction Line Temperature Sensor		Appelez-nous	-
44	WJ26X22636		Defrost Temperature Sensor		Appelez-nous	-
45	WJ26X22533		Liquid Pipe Temperature Sensor		Appelez-nous	-
46	WJ26X22657		Outdoor Ambient Temperature Sensor		Appelez-nous	-
