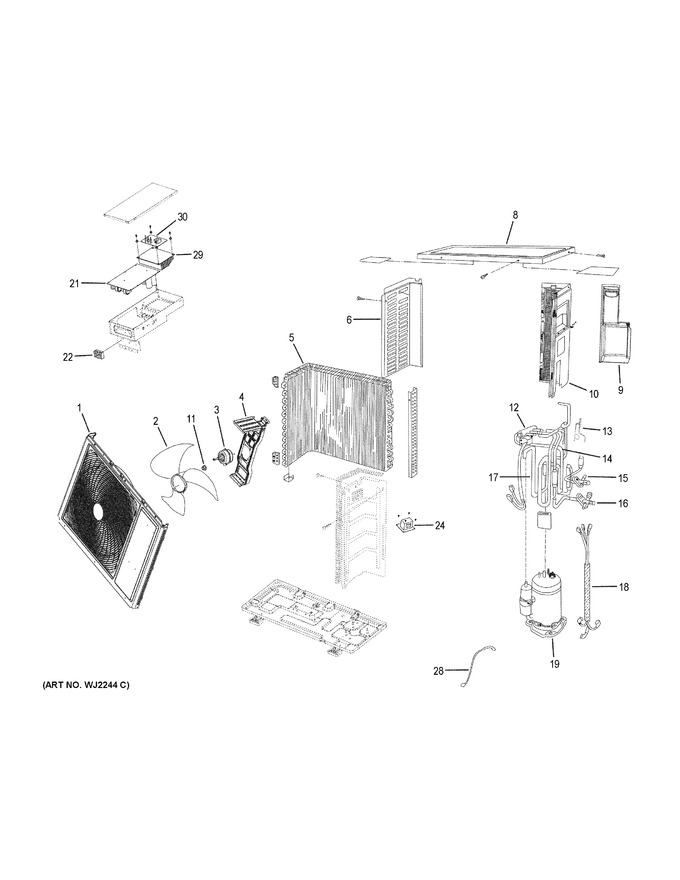

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X24655 | Grill |
|
- | |||||
| 1 | WJ76X22968 | Casing |
|
- | |||||
| 2 | WJ73X22973 | Fan Blade |
|
- | |||||
| 3 | WJ94X22975 | Outdoor Fan Motor |
|
Immediately | $ 180.78 | ||||
| 4 | WJ65X22976 | Outdoor Fan Motor Bracket |
|
- | |||||
| 5 | WJ88X22970 | Condenser |
|
- | |||||
| 6 | WJ76X23135 | Left Side Panel |
|
- | |||||
| 7 | WJ01X24654 | Handle |
|
- | |||||
| 8 | WJ76X22986 | Top Cover |
|
- | |||||
| 9 | WJ76X22982 | Stop Valve Cover |
|
- | |||||
| 10 | WJ76X23136 | Right Side Panel |
|
- | |||||
| 11 | WJ01X22974 | Flange Nut |
|
- | |||||
| 12 | WJ53X22987 | 4-way Valve |
|
- | |||||
| 13 | WJ53X22972 | Electronic Expansion Valve |
|
$ 115.44 | |||||
| 14 | WJ53X22988 | Discharge Tube |
|
- | |||||
| 15 | WJ53X22965 | 2-way Stop Valve |
|
$ 18.48 | |||||
| 16 | WJ53X22966 | 3-way Valve |
|
$ 21.32 | |||||
| 17 | WJ53X22990 | Suction Tube |
|
- | |||||
| 18 | WJ35X22978 | Outdoor Wire Harness |
|
- | |||||
| 19 | WJ98X22969 | Compressor |
|
- | |||||
| 20 | WJ76X22968 | Casing |
|
- | |||||
| 21 | WJ26X22989 | Power Control Board |
|
- | |||||
| 22 | WJ27X22985 | Terminal Block |
|
- | |||||
| 23 | WJ27X24663 | Terminal Block Supply |
|
- | |||||
| 24 | WJ27X22981 | Reactor |
|
- | |||||
| 27 | WJ26X22984 | Sensor Assembly Amb/dis/coil |
|
$ 19.93 | |||||
| 28 | WJ26X22984 | Temperature Sensor |
|
$ 19.93 | |||||
| 29 | WJ27X22980 | Radiator |
|
- | |||||
| 30 | WJ26X22977 | Outdoor Module |
|
- | |||||
| 43 | WJ26X24110 | Inverter Assembly |
|
- | |||||
| 9999 | 49-7835 | Pm Installation Manual |
|
- |
