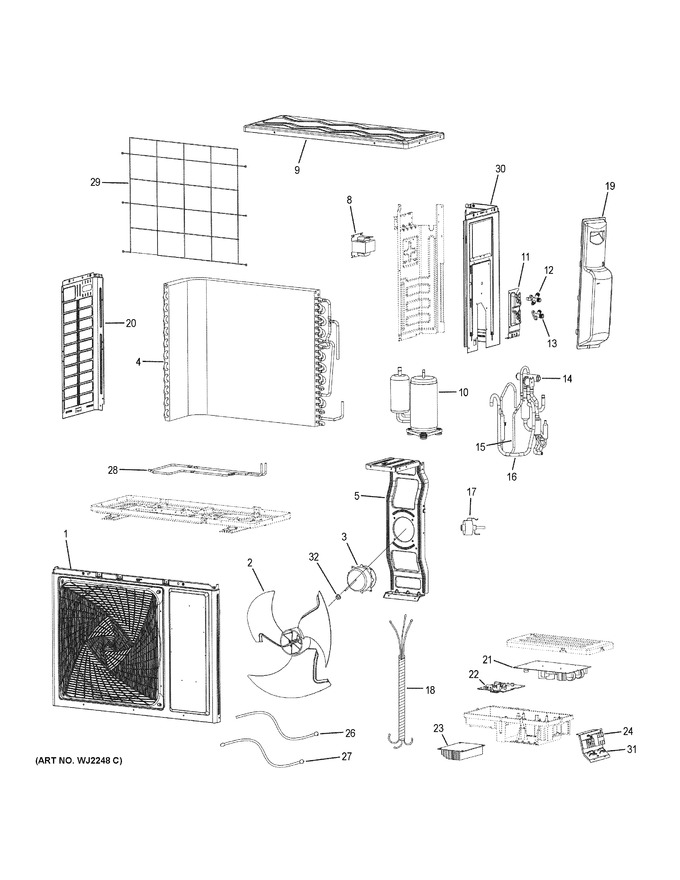

SELECT A DIAGRAM

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ71X25295		Grille		Appelez-nous	-
1	WJ76X23144		Casing		Appelez-nous	-
2	WJ73X23149		Fan Blade		Appelez-nous	-
3	WJ94X23152		Outdoor Fan Motor		Appelez-nous	-
4	WJ88X23146		Condenser				$ 459.11
5	WJ65X23153		Outdoor Fan Motor Bracket		Appelez-nous	-
7	WJ76X23151		Left Side Panel		Appelez-nous	-
8	WJ27X23157		Reactor		Appelez-nous	-
9	WJ76X23162		Top Cover		Appelez-nous	-
10	WJ98X23145		Compressor		Appelez-nous	-
11	WJ53X23163		Valve Set		Appelez-nous	-
12	WJ53X22991		2-way Stop Valve		Appelez-nous	-
13	WJ53X23143		3-way Valve				$ 31.30
14	WJ53X22987		4-way Valve		Appelez-nous	-
15	WJ53X23147		Discharge Tube		Appelez-nous	-
16	WJ53X23161		Suction Tube		Appelez-nous	-
17	WJ26X34033		Power Pcb & Eev Kit		Appelez-nous	-
17	WJ53X23148		Electronic Expansion Valve				$ 126.89
18	WJ35X23003		Outdoor Wire Harness		Appelez-nous	-
19	WJ76X23160		Stop Valve Cover		Appelez-nous	-
20	WJ76X23151		Left Side Panel		Appelez-nous	-
20	WJ76X23144		Casing		Appelez-nous	-
21	WJ26X34033		Power Pcb & Eev Kit		Appelez-nous	-
21	WJ26X23155		Outdoor Power Control Board		Appelez-nous	-
22	WJ26X23154		Outdoor Module Drive Board		Appelez-nous	-
23	WJ27X23005		Radiator		Appelez-nous	-
24	WJ27X23010		Terminal Block		Appelez-nous	-
26	WJ26X22984		Temperature Sensor				$ 19.93
27	WJ26X23009		Temperature Sensor				$ 22.15
28	WJ27X23156		Pan Heater		Appelez-nous	-
29	WJ01X23158		Rear Protection Net		Appelez-nous	-
30	WJ76X23159		Right Side Panel		Appelez-nous	-
31	WJ27X23011		Terminal Block		Appelez-nous	-
32	WJ01X23150		Flange Nut				$ 1.77
43	WJ26X24108		Inverter Assembly		Appelez-nous	-
9999	49-7835		Pm Installation Manual		Appelez-nous	-
