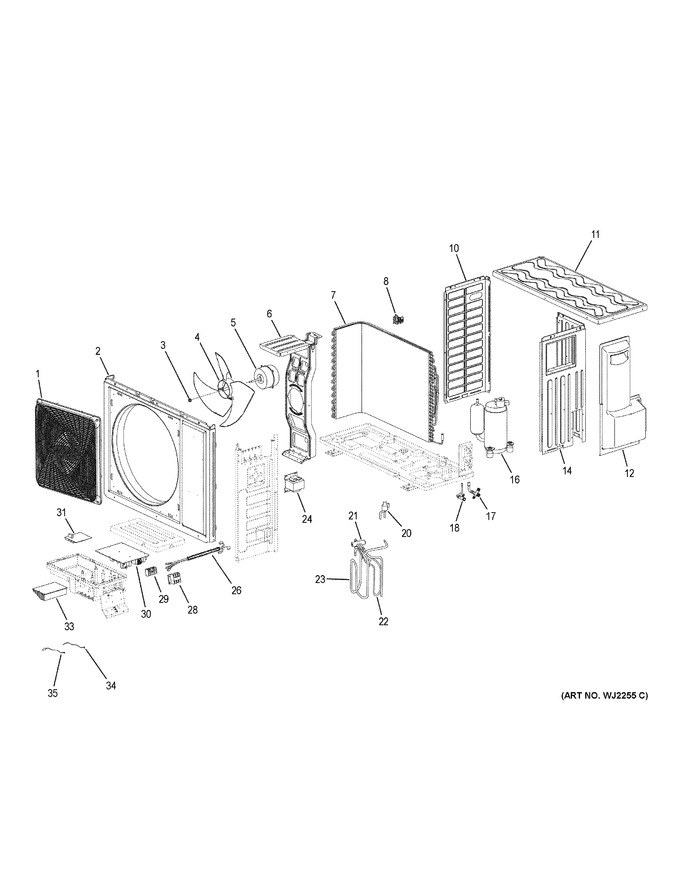

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23225 | Grille |
|
- | |||||
| 2 | WJ76X23221 | Casing |
|
- | |||||
| 3 | WJ01X22974 | Flange Nut |
|
- | |||||
| 4 | WJ73X23014 | Fan Blade |
|
- | |||||
| 5 | WJ94X23000 | Outdoor Fan Motor |
|
$ 480.59 | |||||
| 6 | WJ65X23226 | Outdoor Fan Motor Bracket |
|
- | |||||
| 7 | WJ88X23223 | Condenser |
|
- | |||||
| 8 | WJ01X23219 | Sensor Clip |
|
- | |||||
| 10 | WJ76X23170 | Left Side Panel |
|
- | |||||
| 11 | WJ76X23231 | Top Cover |
|
- | |||||
| 12 | WJ76X23018 | Stop Valve Cover |
|
- | |||||
| 14 | WJ71X23229 | Right Side Panel |
|
- | |||||
| 16 | WJ98X23222 | Compressor |
|
- | |||||
| 17 | WJ53X22992 | 3-way Valve |
|
- | |||||
| 18 | WJ53X22991 | 2-way Stop Valve |
|
- | |||||
| 20 | WJ53X23213 | Electronic Expansion Valve |
|
- | |||||
| 21 | WJ53X22987 | 4-way Valve |
|
- | |||||
| 22 | WJ53X23224 | Discharge Tube |
|
- | |||||
| 23 | WJ53X23230 | Suction Tube |
|
- | |||||
| 24 | WJ27X23006 | Reactor |
|
- | |||||
| 26 | WJ35X23003 | Outdoor Wire Harness |
|
- | |||||
| 28 | WJ27X23011 | Terminal Block |
|
- | |||||
| 29 | WJ27X23010 | Terminal Block |
|
- | |||||
| 30 | WJ26X23228 | Outdoor Power Control Board |
|
$ 350.84 | |||||
| 31 | WJ26X23227 | Outdoor Module Drive Board |
|
- | |||||
| 33 | WJ27X23005 | Radiator |
|
- | |||||
| 34 | WJ26X23009 | Temperature Sensor |
|
$ 22.15 | |||||
| 35 | WJ26X22984 | Temperature Sensor |
|
$ 19.93 | |||||
| 43 | WJ26X24107 | Inverter Assembly |
|
- | |||||
| 47 | WJ76X24672 | Front Service Panel |
|
- | |||||
| 9999 | 31-5000532 | Pm Installation Instruction |
|
- | |||||
| 9999 | 31-5000408 | Pm Other |
|
- |
