Room Air Conditioner
New Model Search:

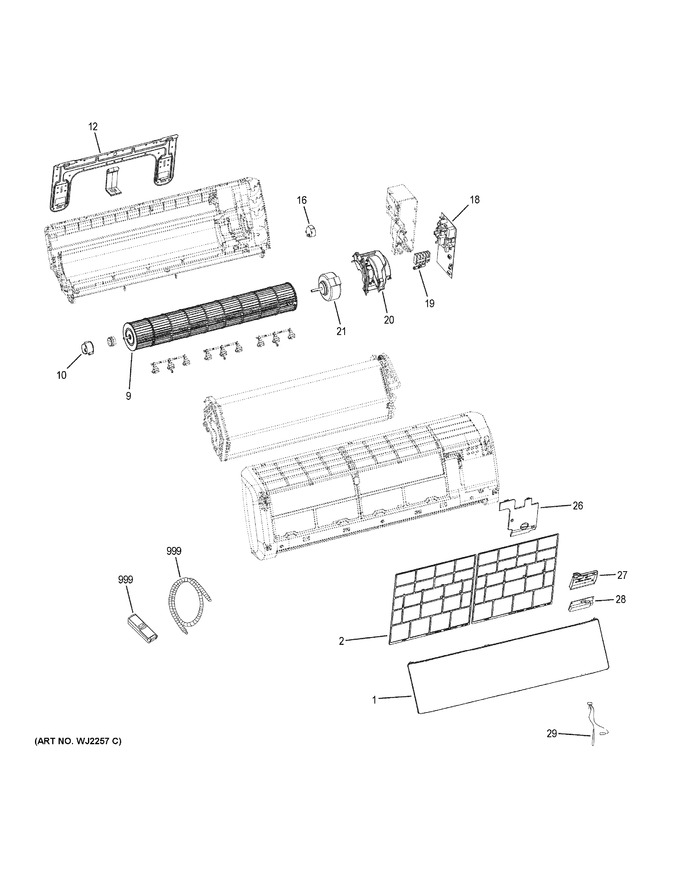

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23243 | Top Panel |
|
$ 46.92 | |||||
| 2 | WJ85X23232 | Air Filter |
|
- | |||||
| 6 | WJ71X24379 | Horizontal Louver |
|
- | |||||
| 7 | WJ01X24240 | Louver Bushing |
|
- | |||||
| 8 | WJ71X24378 | Vertical Louver |
|
- | |||||
| 9 | WJ73X23234 | Cross Flow Fan |
|
$ 77.12 | |||||
| 10 | WJ73X23028 | Cross Flow Fan Bearing |
|
- | |||||
| 12 | WJ65X23240 | Mounting Bracket |
|
- | |||||
| 16 | WJ94X23241 | Stepper Motor |
|
$ 14.23 | |||||
| 17 | WJ27X23906 | Transformer |
|
- | |||||
| 18 | WJ26X23238 | Indoor Power Control Board |
|
$ 100.63 | |||||
| 19 | WJ26X23043 | Terminal Block |
|
- | |||||
| 20 | WJ76X23239 | Motor Cover |
|
- | |||||
| 21 | WJ94X23237 | Indoor Fan Motor |
|
$ 73.38 | |||||
| 24 | WJ76X24371 | Electrical Box Cover (plastic) |
|
- | |||||
| 25 | WJ76X24360 | Electrical Box Cover (metal) |
|
- | |||||
| 26 | WJ76X23233 | Board Cover |
|
- | |||||
| 27 | WJ76X23235 | Display Board Box |
|
- | |||||
| 28 | WJ26X23236 | Display Panel |
|
$ 51.91 | |||||
| 29 | WJ26X23242 | Temperature Sensor |
|
$ 12.08 | |||||
| 59 | WJ87X31825 | Evaporator Coil |
|
- | |||||
| 60 | WJ76X31817 | Casing Assembly |
|
- | |||||
| 61 | WJ71X31816 | Vertical Louvre Assembly |
|
- | |||||
| 999 | YR-HG | Remote Control |
|
$ 16.98 | |||||
| 999 | WJ53X23032 | Drain Hose |
|
$ 6.41 | |||||
| 9999 | 31-5000587 | Pm Install Instructions |
|
- | |||||
| 9999 | 31-5000408 | Pm Other |
|
- | |||||
| 9999 | 49-5000094 | Pm Owners Manual |
|
- |
