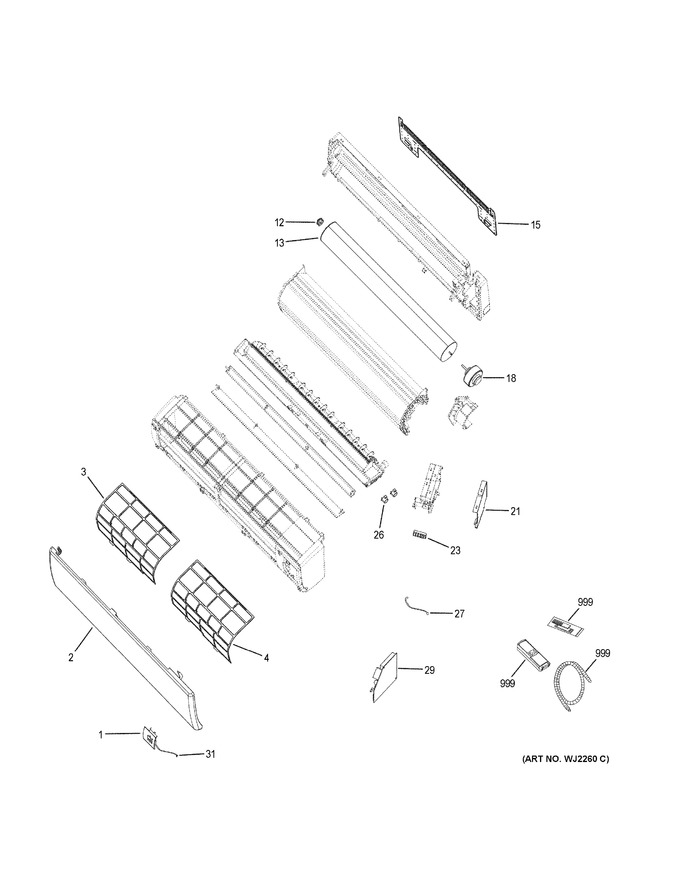

SELECT A DIAGRAM

Optional Accessories


Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WJ76X23300		Display Panel Box		Appelez-nous	-
2	WJ71X23356		Top Panel		Appelez-nous	-
3	WJ85X23273		Air Filter 1				$ 12.96
4	WJ85X23275		Air Filter 2				$ 23.78
12	WJ73X23304		Fan Bearing			Immediately	$ 2.16
13	WJ73X23292		Cross Flow Fan				$ 53.32
15	WJ65X23325		Mounting Bracket		Appelez-nous	-
18	WJ94X23317		Indoor Motor		Appelez-nous	-
21	WJ26X23302		Electrical Box Protector Board		Appelez-nous	-
23	WJ26X23043		Terminal Block		Appelez-nous	-
26	WJ94X23058		Stepper Motor				$ 52.21
27	WJ26X23344		Sensor		Appelez-nous	-
29	WJ26X23318		Indoor Power Control Board				$ 145.06
31	WJ26X23341		Receiver Power Control Board		Appelez-nous	-
999	WJ01X23311		Air Purification Filter		Appelez-nous	-
999	WJ01X23342		Yr-hd				$ 46.92
999	WJ53X23032		Drain Hose				$ 6.41

    View Diagram in Separate Window       Print Part List
