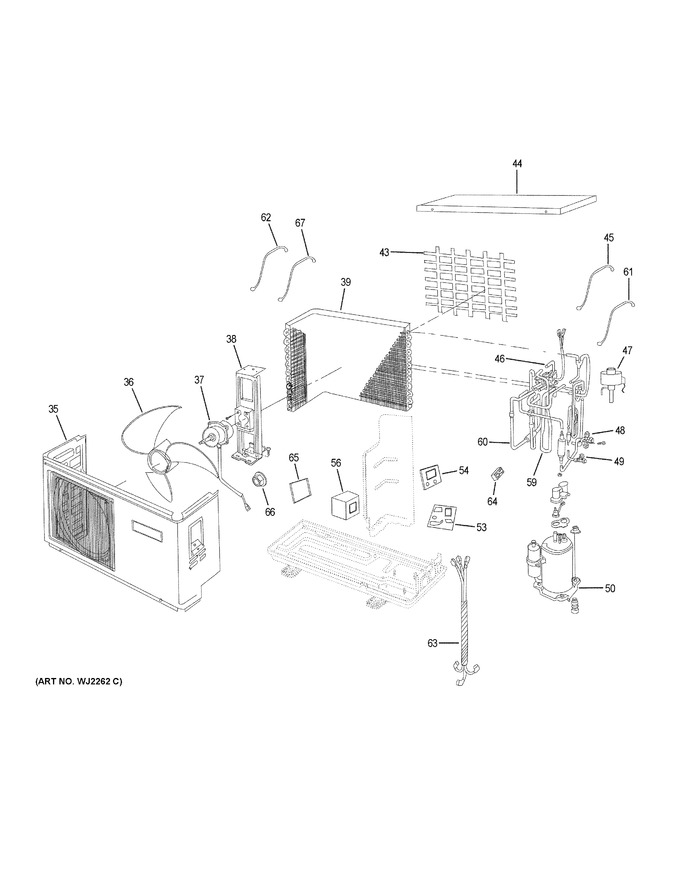

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
35	WJ76X23279		Casing		Appelez-nous	-
36	WJ73X23190		Fan Blade				$ 24.18
37	WJ94X22975		Outdoor Fan Motor			Immediately	$ 180.78
38	WJ65X23308		Fan Motor Bracket		Appelez-nous	-
39	WJ88X23288		Condenser		Appelez-nous	-
43	WJ71X23338		Rear Grille		Appelez-nous	-
44	WJ76X23200		Top Cover				$ 55.96
45	WJ26X23334		Pipe Sensor				$ 9.27
46	WJ53X22967		4-way Valve		Appelez-nous	-
47	WJ53X23303		Electronic Expansion Valve		Appelez-nous	-
48	WJ53X23143		3-way Valve				$ 31.30
49	WJ53X22991		2-way Stop Valve		Appelez-nous	-
50	WJ98X23284		Compressor				$ 540.70
53	WJ26X23330		Outdoor Power Control Board		Appelez-nous	-
54	WJ26X23335		Power Module Board		Appelez-nous	-
56	WJ27X22981		Reactor		Appelez-nous	-
59	WJ53X23297		Discharge Tube		Appelez-nous	-
60	WJ53X23350		Suction Tube		Appelez-nous	-
61	WJ26X23286		Compressor Temperature Sensor				$ 11.04
62	WJ26X23278		Ambient Temperature Sensor				$ 9.60
63	WJ35X23332		Outdoor Wiring Harness		Appelez-nous	-
64	WJ27X22985		Terminal Block		Appelez-nous	-
65	WJ26X23195		Radiator		Appelez-nous	-
66	WJ01X23150		Flange Nut				$ 1.77
67	WJ26X23346		Suction Temperature Sensor		Appelez-nous	-
