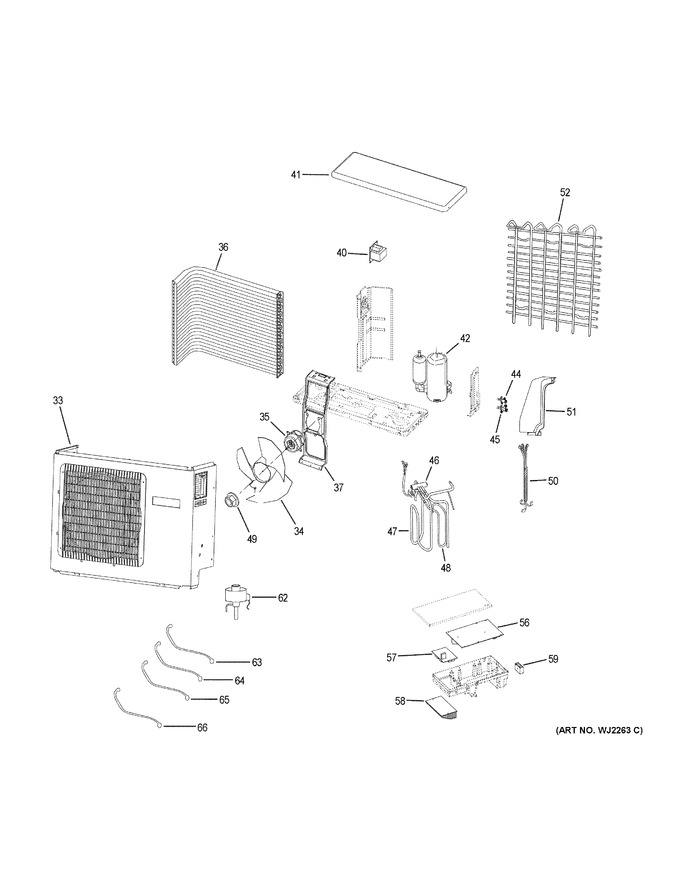

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
33	WJ76X23282		Casing		Appelez-nous	-
34	WJ73X22973		Fan Blade		Appelez-nous	-
35	WJ94X22975		Outdoor Fan Motor			Immediately	$ 180.78
36	WJ88X23289		Condenser		Appelez-nous	-
37	WJ65X23307		Fan Motor Bracket		Appelez-nous	-
40	WJ27X23006		Reactor		Appelez-nous	-
41	WJ76X23200		Top Cover				$ 55.96
42	WJ98X23284		Compressor				$ 540.70
44	WJ53X22965		2-way Stop Valve				$ 18.48
45	WJ53X22966		3-way Valve				$ 21.32
46	WJ53X22967		4-way Valve		Appelez-nous	-
47	WJ53X23349		Suction Tube		Appelez-nous	-
48	WJ53X23294		Discharge Tube		Appelez-nous	-
49	WJ01X23150		Flange Nut				$ 1.77
50	WJ35X23333		Outdoor Wiring Harness		Appelez-nous	-
51	WJ76X23201		Stop Valve Cover		Appelez-nous	-
52	WJ71X23314		Grille		Appelez-nous	-
56	WJ26X23329		Outdoor Power Control Board		Appelez-nous	-
57	WJ26X23335		Power Module Board		Appelez-nous	-
58	WJ26X23195		Radiator		Appelez-nous	-
59	WJ27X22985		Terminal Block		Appelez-nous	-
62	WJ53X23303		Electronic Expansion Valve		Appelez-nous	-
63	WJ26X23286		Compressor Temperature Sensor				$ 11.04
64	WJ26X23278		Ambient Temperature Sensor				$ 9.60
65	WJ26X23334		Pipe Sensor				$ 9.27
66	WJ26X23346		Suction Temperature Sensor		Appelez-nous	-
