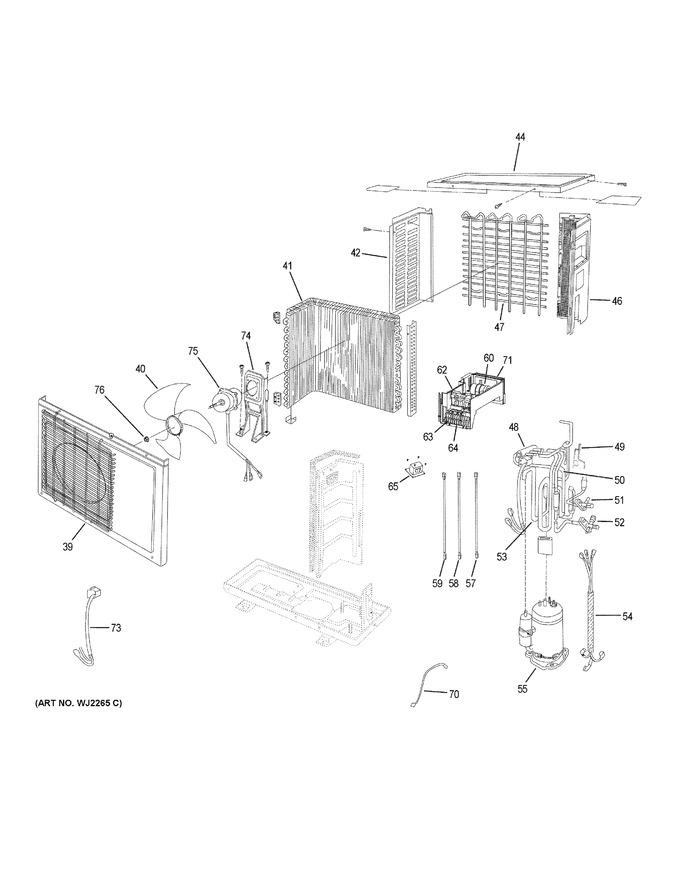

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 39 | WJ76X23281 | Casing |
|
- | |||||
| 40 | WJ73X23306 | Fan Blade |
|
$ 55.09 | |||||
| 41 | WJ88X23287 | Condenser |
|
- | |||||
| 42 | WJ71X23323 | Left Side Panel |
|
- | |||||
| 44 | WJ71X23352 | Top Cover |
|
- | |||||
| 46 | WJ71X23343 | Right Side Panel |
|
- | |||||
| 47 | WJ71X23340 | Rear Grille |
|
- | |||||
| 48 | WJ53X22987 | 4-way Valve |
|
- | |||||
| 49 | WJ53X22996 | Electronic Expansion Valve |
|
- | |||||
| 50 | WJ53X23296 | Discharge Tube |
|
- | |||||
| 51 | WJ53X23268 | 2-way Valve |
|
- | |||||
| 52 | WJ53X23269 | 3-way Valve |
|
- | |||||
| 53 | WJ53X23347 | Suction Tube |
|
- | |||||
| 54 | WJ35X23003 | Outdoor Wire Harness |
|
- | |||||
| 55 | WJ98X23283 | Compressor |
|
- | |||||
| 57 | WJ26X23286 | Compressor Temperature Sensor |
|
$ 11.04 | |||||
| 58 | WJ26X23334 | Pipe Sensor |
|
$ 9.27 | |||||
| 59 | WJ26X23278 | Ambient Temperature Sensor |
|
$ 9.60 | |||||
| 60 | WJ26X23336 | Power Module Board |
|
- | |||||
| 62 | WJ26X23328 | Outdoor Power Control Board |
|
- | |||||
| 63 | WJ27X23010 | Terminal Block |
|
- | |||||
| 64 | WJ27X23011 | Terminal Block |
|
- | |||||
| 65 | WJ27X23006 | Reactor |
|
- | |||||
| 70 | WJ26X23346 | Suction Temperature Sensor |
|
- | |||||
| 71 | WJ27X23337 | Radiator |
|
- | |||||
| 73 | WJ35X23024 | Electronic Expansion Valve Coil |
|
- | |||||
| 74 | WJ65X23309 | Fan Motor Bracket |
|
- | |||||
| 75 | WJ94X23326 | Outdoor Fan Motor |
|
$ 325.28 | |||||
| 76 | WJ01X22974 | Flange Nut |
|
- |
