Room Air Conditioner
New Model Search:

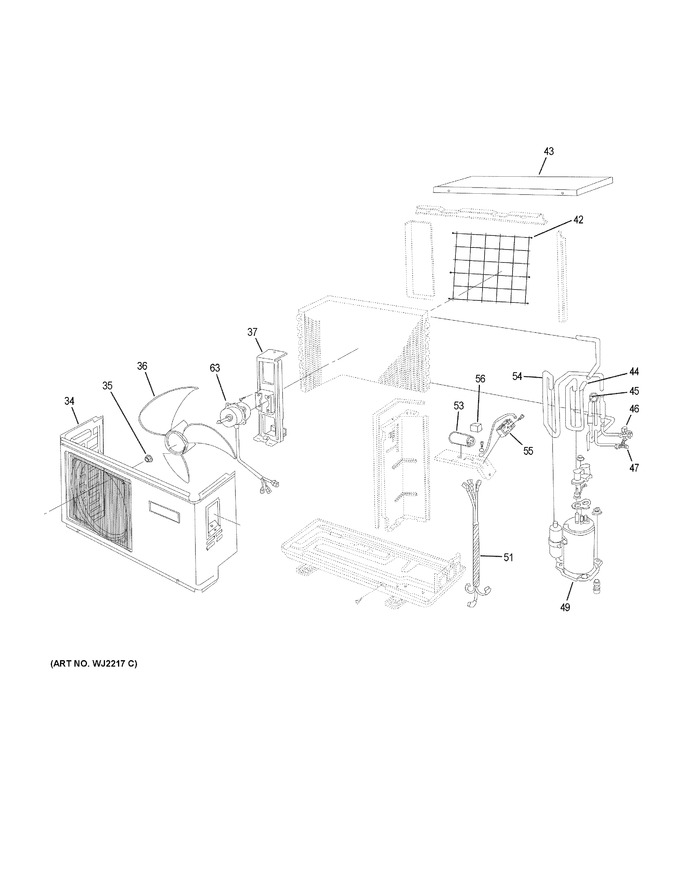

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 34 | WJ76X23478 | Casing |
|
- | |||||
| 35 | WJ01X23150 | Flange Nut |
|
$ 1.77 | |||||
| 36 | WJ73X23190 | Fan Blade |
|
$ 24.18 | |||||
| 37 | WJ65X23479 | Outdoor Fan Motor Bracket |
|
- | |||||
| 42 | WJ71X23483 | Rear Guard Net |
|
- | |||||
| 43 | WJ76X23200 | Top Cover |
|
$ 55.96 | |||||
| 44 | WJ53X23488 | Dishcarge Tube |
|
- | |||||
| 45 | WJ53X23489 | Capillary |
|
- | |||||
| 46 | WJ53X23143 | 3-way Valve |
|
$ 31.30 | |||||
| 47 | WJ53X22991 | 2-way Stop Valve |
|
- | |||||
| 49 | WJ98X23484 | Compressor |
|
$ 583.92 | |||||
| 51 | WJ35X23485 | Outdoor Wire Harness |
|
$ 32.68 | |||||
| 53 | WJ20X23487 | Compressor Capacitor |
|
- | |||||
| 54 | WJ53X23481 | Suction Tube |
|
- | |||||
| 55 | WJ71X23480 | Terminal Cover |
|
- | |||||
| 56 | WJ20X23482 | Motor Capacitor |
|
- | |||||
| 63 | WJ94X23486 | Outdoor Fan Motor |
|
$ 160.17 |
