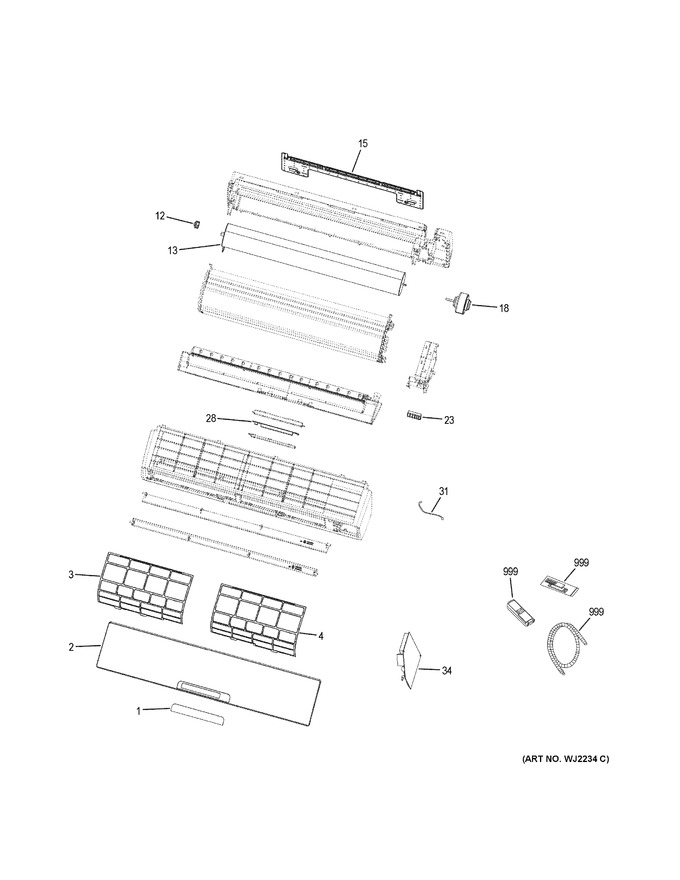

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23620 | Display Panel |
|
- | |||||
| 2 | WJ71X23622 | Top Panel |
|
- | |||||
| 3 | WJ85X23273 | Air Filter 1 |
|
$ 12.96 | |||||
| 4 | WJ85X23275 | Air Filter 2 |
|
$ 23.78 | |||||
| 12 | WJ73X23304 | Fan Bearing |
|
Immediately | $ 2.16 | ||||
| 13 | WJ73X23292 | Cross Flow Fan |
|
$ 53.32 | |||||
| 15 | WJ65X23325 | Mounting Bracket |
|
- | |||||
| 18 | WJ94X23317 | Indoor Motor |
|
- | |||||
| 23 | WJ26X23043 | Terminal Block |
|
- | |||||
| 28 | WJ71X23619 | Display Panel |
|
- | |||||
| 31 | WJ26X23474 | Sensor |
|
- | |||||
| 34 | WJ26X23621 | Indoor Power Control Board |
|
- | |||||
| 999 | WJ53X23032 | Drain Hose |
|
$ 6.41 | |||||
| 999 | WJ01X23606 | Remote Control |
|
- | |||||
| 999 | WJ01X23311 | Air Purification Filter |
|
- |
