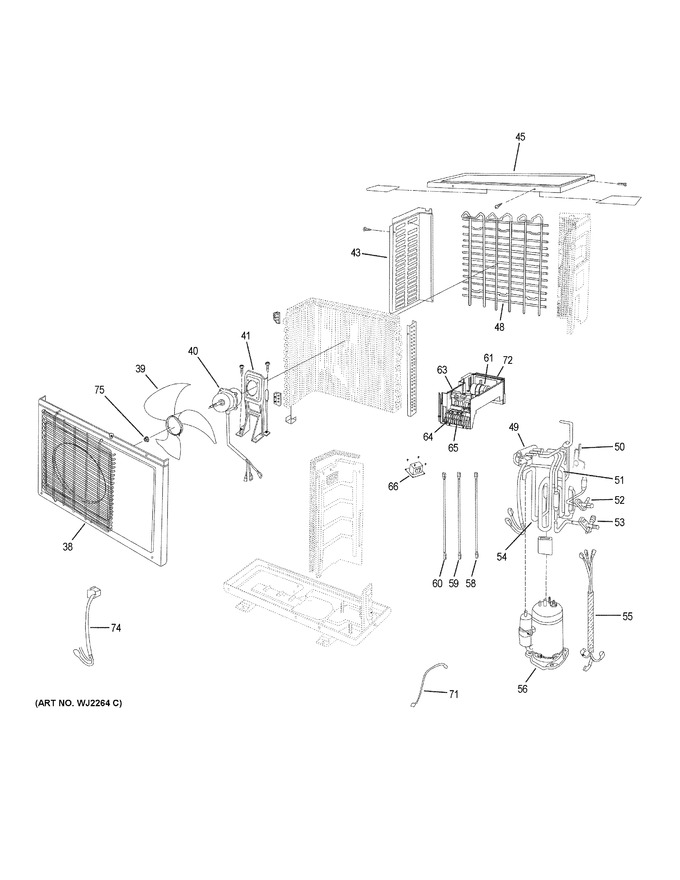

Room Air Conditioner


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
38	WJ76X23280		Casing		Appelez-nous	-
39	WJ73X23305		Fan Blade		Appelez-nous	-
40	WJ94X23327		Outdoor Fan Motor				$ 196.23
41	WJ65X23310		Fan Motor Bracket		Appelez-nous	-
43	WJ71X23322		Left Side Panel		Appelez-nous	-
45	WJ71X23357		Top Panel		Appelez-nous	-
48	WJ71X23339		Rear Grille		Appelez-nous	-
49	WJ53X22987		4-way Valve		Appelez-nous	-
50	WJ53X22996		Electronic Expansion Valve		Appelez-nous	-
51	WJ53X23295		Discharge Tube		Appelez-nous	-
52	WJ53X22991		2-way Stop Valve		Appelez-nous	-
53	WJ53X22992		3-way Valve		Appelez-nous	-
54	WJ53X23348		Suction Tube		Appelez-nous	-
55	WJ35X23003		Outdoor Wire Harness		Appelez-nous	-
56	WJ98X23285		Compressor		Appelez-nous	-
58	WJ26X23286		Compressor Temperature Sensor				$ 11.04
59	WJ26X23334		Pipe Sensor				$ 9.27
60	WJ26X23278		Ambient Temperature Sensor				$ 9.60
61	WJ26X23002		Outdoor Module		Appelez-nous	-
63	WJ26X23331		Outdoor Power Control Board				$ 369.72
64	WJ27X23010		Terminal Block		Appelez-nous	-
65	WJ27X23011		Terminal Block		Appelez-nous	-
66	WJ27X23006		Reactor		Appelez-nous	-
71	WJ26X23346		Suction Temperature Sensor		Appelez-nous	-
72	WJ27X23337		Radiator		Appelez-nous	-
74	WJ35X22997		Electronic Expansion Valve Coil		Appelez-nous	-
75	WJ01X23312		Flange Nut				$ 8.88
