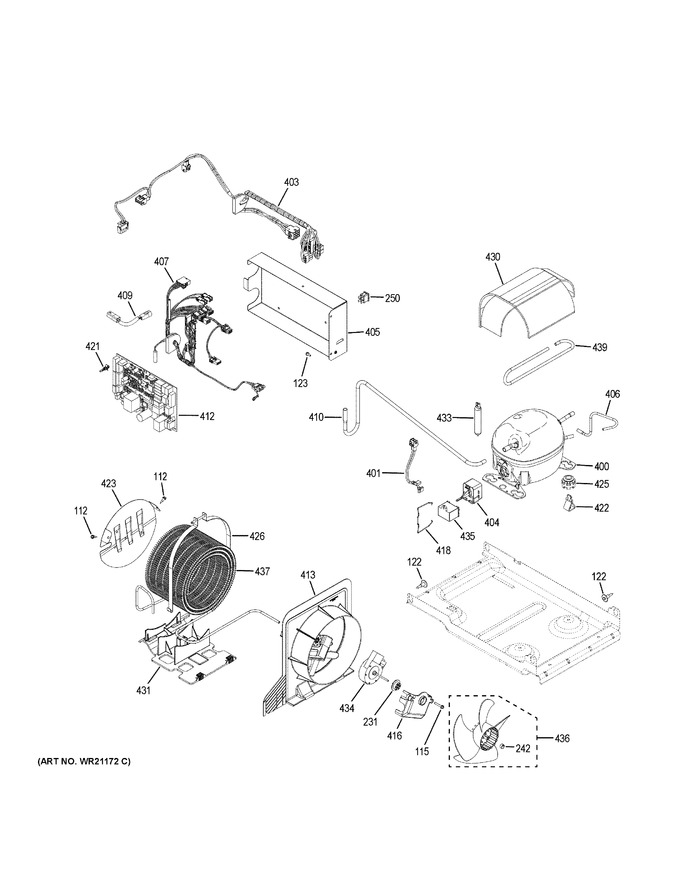

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Case Parts
Door
Fresh Food Section
Machine Compartment
Shelves & Drawers
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 112 | WR01X10635 | Scr 8-32 Ca Ihxw .625 S |
|
- | |||||
| 115 | WB1K5156 | Screw |
|
- | |||||
| 122 | WR01X10685 | Scr 8-18 Ab Ihw |
|
- | |||||
| 123 | WZ5X158 | Screw Ground |
|
- | |||||
| 231 | WR01A00315 | Grommet Fan Motor (Replaces: WR02X10520) |
|
$ 4.17 | |||||
| 242 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 250 | WR23X10571 | Master Light Switch |
|
- | |||||
| 400 | WR87X29007 | Compressor |
|
- | |||||
| 401 | WR55X29011 | Compressor Jumper Harness |
|
- | |||||
| 403 | WR55X29008 | Main Ac Harness |
|
- | |||||
| 404 | WR55X29062 | Overload Ptcr Combo |
|
- | |||||
| 405 | WR02X28975 | Mainboard Cover |
|
- | |||||
| 406 | WR87X29004 | Compressor Discharge Jumper Tube |
|
- | |||||
| 407 | WR55X29009 | Main Dc Harness |
|
- | |||||
| 409 | WR55X29015 | Personality Jumper Harness 30" |
|
- | |||||
| 410 | WR87X28982 | Compressor Suction Tube |
|
- | |||||
| 412 | WR55X30086 | Main Control Board |
|
- | |||||
| 412 | WR55X28659 | Board Asm Main Control |
|
- | |||||
| 413 | WR02X29006 | Condensor Fan Housing |
|
- | |||||
| 416 | WR02X28957 | Condensor Fan Bracket |
|
- | |||||
| 418 | WR02X26153 | Clip Retainer Mei |
|
- | |||||
| 421 | WR02X29169 | Main Board Stand Off |
|
- | |||||
| 422 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 423 | WR17X21164 | Baffle Condenser |
|
- | |||||
| 425 | WR02X22869 | Grommet |
|
- | |||||
| 426 | WR01X27406 | Strap Cond Asm |
|
- | |||||
| 430 | WR01F00026 | Dampener Compressor (Replaces: WR02X13428) |
|
Immediately | $ 38.97 | ||||
| 430 | WR02X30653 | Compressor Mastic |
|
- | |||||
| 431 | WR02X21166 | Support Condenser |
|
- | |||||
| 433 | WR74X10125 | Dryer |
|
- | |||||
| 434 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 435 | WR55X23731 | Capacitor 12 Uf |
|
- | |||||
| 436 | WR01F02003 | Blade Cond Fan Asm (Replaces: WR60X10206) |
|
$ 11.51 | |||||
| 437 | WR87X29131 | Condenser |
|
- | |||||
| 439 | WR84X29132 | Process Tube |
|
- |
