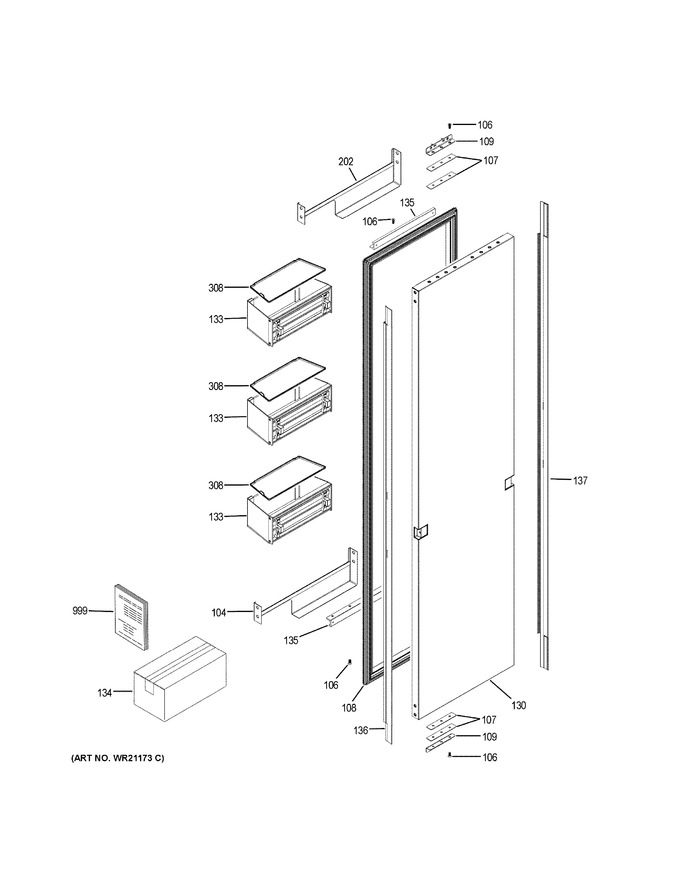

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 104 | WR02X29033 | Bottom Door Bracket Cover 24" |
|
- | |||||
| 106 | WR02X29021 | Bolt T30 M6 |
|
- | |||||
| 107 | WR02X29029 | Door Hinge Shim |
|
- | |||||
| 108 | WR14X28969 | Door Gasket 24" |
|
- | |||||
| 109 | WR02X28999 | Door To Hinge Bracket |
|
- | |||||
| 130 | WR78X29109 | Freezer Door 24" |
|
- | |||||
| 133 | WR71X29163 | Door Bin 24" |
|
- | |||||
| 134 | WR01X29089 | Custom Panel Bracket And Template Kit Fr |
|
- | |||||
| 135 | WR02X29140 | Panel Bracket 24" |
|
- | |||||
| 136 | WR02X29338 | Handle Side Door Trim |
|
- | |||||
| 137 | WR02X29337 | Hinge Side Door Trim |
|
- | |||||
| 202 | WR02X29036 | Top Door Bracket Cover 24" |
|
- | |||||
| 308 | WR17X28979 | Bin Liner 24" |
|
- | |||||
| 999 | 31-51979 | Pm Mini Manual |
|
- | |||||
| 999 | WR01X30717 | 24" Door Panel Template |
|
- |
