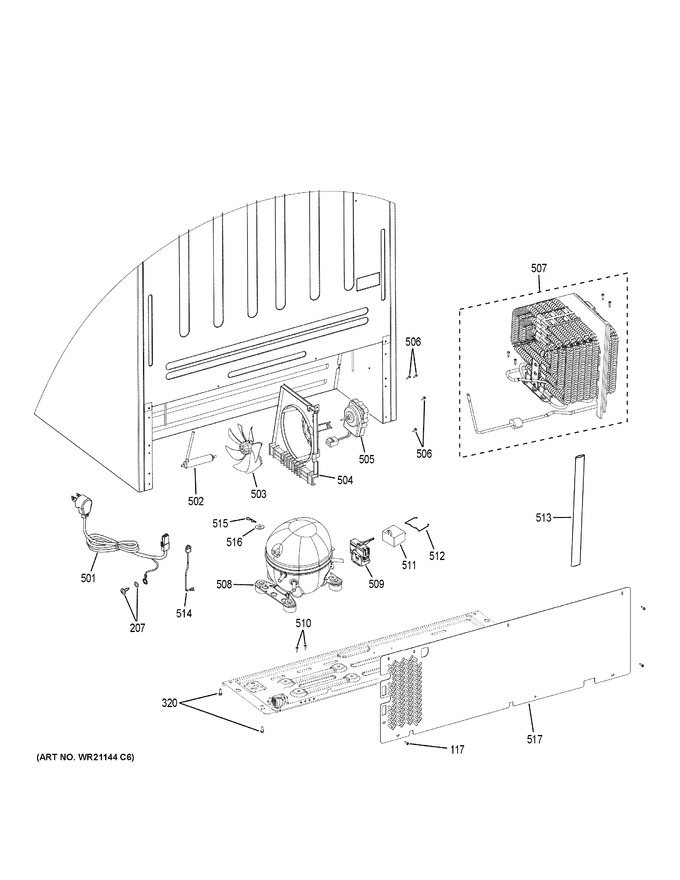

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 117 | WR01X27330 | Screw #8 X 9/16" |
|
- | |||||
| 207 | WR01X27302 | Ground Screw Star Washer |
|
- | |||||
| 320 | WR01X27331 | Screw 1/4" X 3/4" |
|
- | |||||
| 501 | WR55X27408 | Power Cord |
|
$ 105.23 | |||||
| 502 | WR87X27294 | Drier |
|
- | |||||
| 503 | WR60X27274 | Condenser Fan Blade |
|
Immediately | $ 22.03 | ||||
| 504 | WR02X27276 | Condenser Fan Bracket |
|
$ 92.41 | |||||
| 505 | WR60X27315 | Condenser Fan Motor |
|
$ 355.00 | |||||
| 506 | WR01X27332 | Screw 3.9mm X 11mm |
|
- | |||||
| 507 | WR87X27284 | Condenser |
|
- | |||||
| 508 | WR87X28809 | Em3z50hlt Compressor |
|
- | |||||
| 509 | WR55X27418 | Tsd |
|
- | |||||
| 510 | WR01X27301 | Ground Screw #8-32 X 3/8" |
|
- | |||||
| 511 | WR55X23731 | Capacitor 12 Uf |
|
- | |||||
| 512 | WR02X22564 | Clip Retainer Combo |
|
- | |||||
| 513 | WR02X27297 | Drain Tube Extension |
|
- | |||||
| 514 | WR55X27304 | Compressor Harness |
|
- | |||||
| 515 | WR01X27318 | Pin Compressor |
|
- | |||||
| 516 | WR02X27433 | Compressor Washer |
|
- | |||||
| 517 | WR13X27286 | Rear Access Cover |
|
- |
