Diagram for Room Air Conditioner
Room Air Conditioner


New Model Search:


1-855-472-4566
< Back to Home
Keyword Search:

Diagram # Part Number Description Series Availability Ships Price Add to Cart
2 WJ01X22291 Casters Appelez-nous -
45 WJ71X22260 Air Filter Special Order $ 23.12

58 WJ65X23595 Exhaust Hose Special Order $ 89.45

59 WJ76X23403 Heat Exhaust Hose Connector Special Order $ 30.57

60 WJ65X23596 Hose Connector Appelez-nous -
61 WJ76X23406 Cover Appelez-nous -
62 WJ01X23400 Plate Appelez-nous -
63 WJ01X23401 Plate Special Order $ 42.67

64 WJ01X23402 Plate Special Order $ 23.12

65 WJ26X22286 Remote Control Special Order $ 73.03

9999 49-7822 Pm Use And Care Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

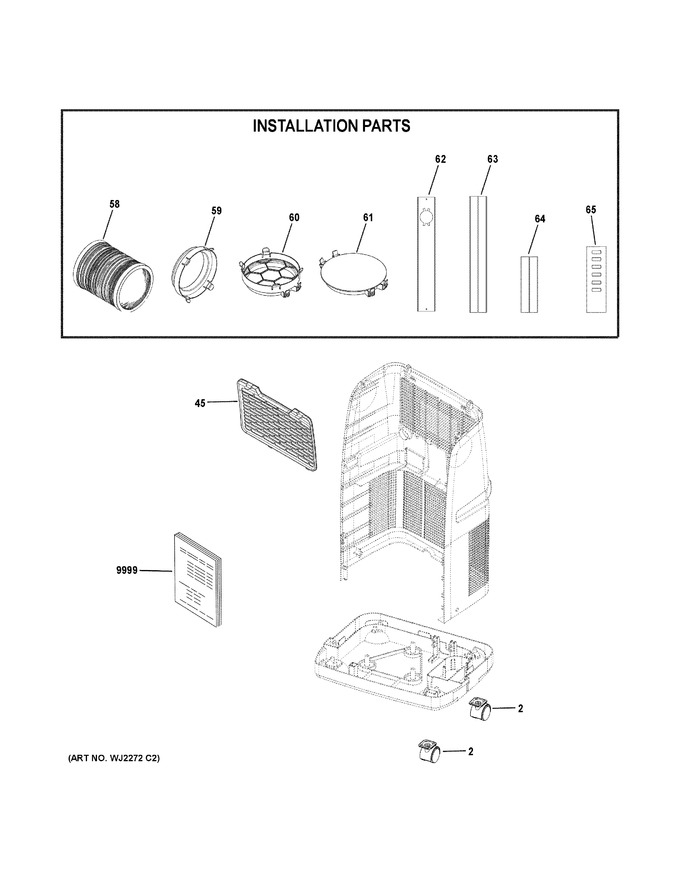

Diagram for HPC12XCRN1
