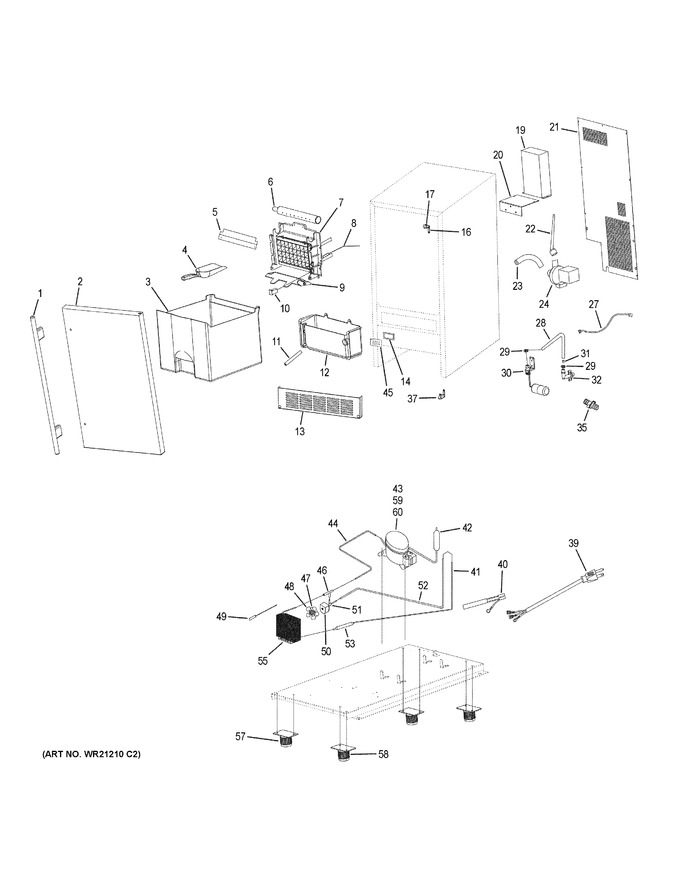

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Refrigertaor
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WR12X29461 | Stainless Steel Handle |
|
- | |||||
| 2 | WR78X29442 | Icemaker - Stainless Steel Door |
|
- | |||||
| 3 | WR30X29441 | Ice Bin |
|
- | |||||
| 4 | WR30X29444 | Ice Scoop |
|
- | |||||
| 5 | WR01X29467 | Water Diverter |
|
- | |||||
| 6 | WR01X29466 | Water Distribution Tube |
|
- | |||||
| 7 | WR87X29437 | Evaporator |
|
- | |||||
| 8 | WR55X29438 | Evaporator Thermistor |
|
- | |||||
| 9 | WR30X29439 | Feeler Arm |
|
- | |||||
| 10 | WR55X29443 | Ice Reed Switch |
|
- | |||||
| 11 | WR01X29434 | Drain Tube |
|
- | |||||
| 12 | WR14X29469 | Water Reservoir |
|
- | |||||
| 13 | WR74X29460 | Stainless Steel Grille |
|
- | |||||
| 14 | WR55X29465 | User Interface Display Board |
|
- | |||||
| 16 | WR13X29463 | Top Hinge |
|
- | |||||
| 17 | WR01X29464 | Top Hinge Pin |
|
- | |||||
| 19 | WR55X29448 | Main Board |
|
- | |||||
| 20 | WR14X29449 | Main Board Bracket |
|
- | |||||
| 21 | WR14X29454 | Rear Access Cover |
|
- | |||||
| 22 | WR01X29452 | Pump Dishcarge Tube |
|
- | |||||
| 23 | WR01X29453 | Pump Inlet Tube |
|
- | |||||
| 24 | WR14X29468 | Water Pump |
|
$ 133.28 | |||||
| 27 | WR01X29470 | Water Supply Tube |
|
- | |||||
| 28 | WR01X29431 | Drain Hose |
|
- | |||||
| 29 | WR01X29432 | Drain Hose Nut |
|
- | |||||
| 30 | WR01X29440 | Float |
|
- | |||||
| 31 | WR01X29446 | Inlet Tube Insert |
|
- | |||||
| 32 | WR01X29445 | Inlet Tube |
|
- | |||||
| 35 | WR01X29433 | Drain Port |
|
- | |||||
| 37 | WR13X29423 | Bottom Hinge |
|
- | |||||
| 39 | WR55X29451 | Power Cord |
|
- | |||||
| 40 | WR55X29471 | Wiring Harness |
|
- | |||||
| 41 | WR87X29424 | Capillary Tube |
|
- | |||||
| 42 | WR87X29435 | Drier |
|
- | |||||
| 43 | WR87X29425 | Compressor |
|
- | |||||
| 44 | WR01X29462 | Suction Tube |
|
- | |||||
| 45 | WR55X30068 | Display Overlay |
|
- | |||||
| 46 | WR01X29430 | Copper Split Tee |
|
- | |||||
| 47 | WR60X29428 | Condenser Fan Motor |
|
- | |||||
| 48 | WR60X29427 | Condenser Fan Blade |
|
- | |||||
| 49 | WR55X29429 | Condenser Thermistor |
|
- | |||||
| 50 | WR87X29456 | Reversing Valve |
|
- | |||||
| 51 | WR87X29457 | Reversing Valve Solenoid |
|
- | |||||
| 52 | WR01X29458 | Reversing Valve Tube |
|
- | |||||
| 53 | WR87X29436 | Drier |
|
- | |||||
| 55 | WR87X29426 | Condenser |
|
- | |||||
| 57 | WR01X29447 | Left Leveling Leg |
|
- | |||||
| 58 | WR01X29459 | Right Leveling Leg |
|
- | |||||
| 59 | WR87X29455 | Relay Start |
|
- | |||||
| 60 | WR87X29450 | Overload Protector |
|
- |
