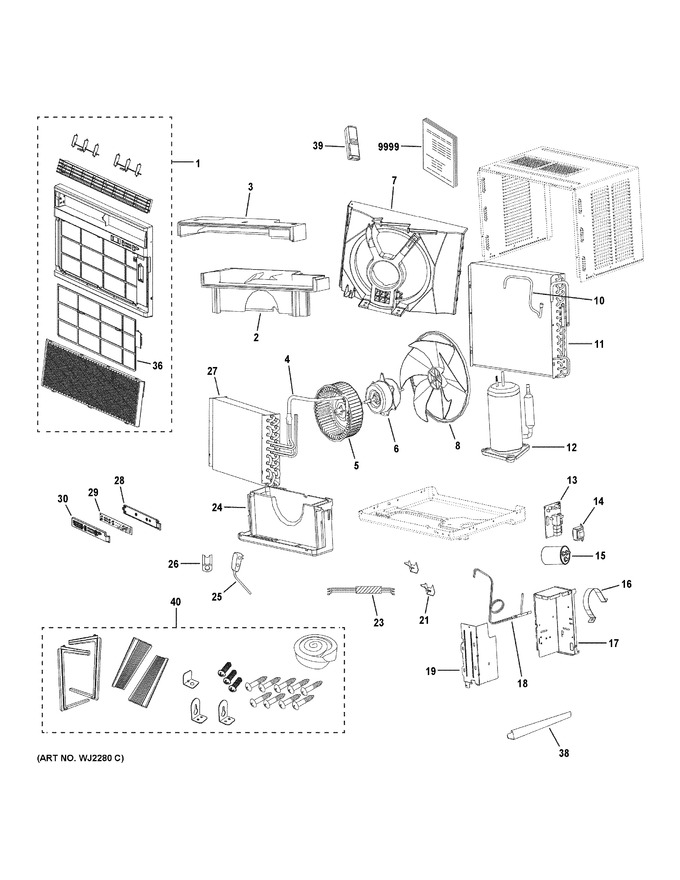

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23878 | Front Panel |
|
- | |||||
| 2 | WJ76X23864 | Indoor Fan Shroud, Middle |
|
- | |||||
| 3 | WJ76X23863 | Indoor Fan Shroud, Upper |
|
- | |||||
| 4 | WJ53X23871 | Suction Tube |
|
- | |||||
| 5 | WJ76X22190 | Indoor Fan Blade |
|
- | |||||
| 6 | WJ94X22189 | Fan Motor |
|
- | |||||
| 7 | WJ76X23866 | Outdoor Fan Shroud |
|
- | |||||
| 8 | WJ76X22192 | Outdoor Fan Blade |
|
- | |||||
| 10 | WJ53X23872 | Discharging Tube |
|
- | |||||
| 11 | WJ88X23885 | Condenser |
|
- | |||||
| 12 | WJ98X23884 | Compressor |
|
- | |||||
| 13 | WJ98X23881 | Compressor |
|
- | |||||
| 14 | WJ26X22155 | Main Board |
|
$ 167.10 | |||||
| 15 | WJ27X20099 | Transformer |
|
- | |||||
| 16 | WJ20X22183 | Capacitor |
|
$ 27.79 | |||||
| 17 | WJ76X23861 | Cover |
|
- | |||||
| 18 | WJ53X23876 | Capillary Tube |
|
- | |||||
| 19 | WJ76X23862 | Electric Cover Box |
|
- | |||||
| 21 | WJ66X10101 | Bracket Guide |
|
- | |||||
| 23 | WJ35X22191 | Main Harness |
|
- | |||||
| 24 | WJ76X23865 | Indoor Fan Shroud, Lower |
|
- | |||||
| 25 | WJ35X22193 | Power Cord |
|
- | |||||
| 26 | WJ01X22194 | Strain Relief |
|
- | |||||
| 27 | WJ87X23875 | Evaporator |
|
- | |||||
| 28 | WJ26X23867 | Ui Board Support |
|
- | |||||
| 29 | WJ26X23879 | Ui Board |
|
$ 111.99 | |||||
| 30 | WJ26X23868 | Ui Board Cover |
|
- | |||||
| 36 | WJ85X23869 | Filter |
|
- | |||||
| 38 | WJ65X22104 | Top Rail |
|
$ 15.77 | |||||
| 39 | WJ26X23870 | Remote Control |
|
- | |||||
| 40 | WJ01X23642 | Installation Asm |
|
- | |||||
| 85 | WJ05X20122 | Plug |
|
- | |||||
| 9999 | 31-30828 | Pm Mini Manual |
|
- | |||||
| 9999 | 49-7817 | Pm Use And Care |
|
- |
