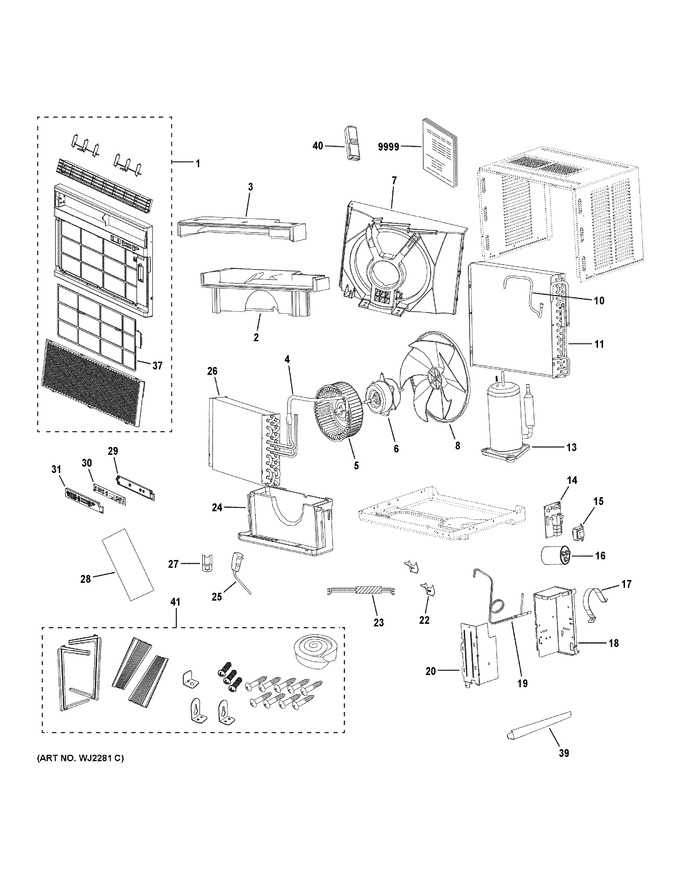

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WJ71X23905 | Front Panel Asm |
|
- | |||||
| 2 | WJ76X23888 | Indoor Fan Shroud, Middle |
|
- | |||||
| 3 | WJ76X23887 | Indoor Fan Shroud, Upper |
|
- | |||||
| 4 | WJ53X23904 | Suction Tube |
|
- | |||||
| 5 | WJ76X22150 | Indoor Fan Blade |
|
- | |||||
| 6 | WJ94X22406 | Fan Motor |
|
- | |||||
| 7 | WJ76X23890 | Outdoor Fan Shroud |
|
- | |||||
| 8 | WJ73X20380 | Axial Fan |
|
- | |||||
| 10 | WJ53X23894 | Discharging Tube |
|
- | |||||
| 11 | WJ88X23895 | Condenser |
|
- | |||||
| 13 | WJ98X23896 | Compressor |
|
- | |||||
| 14 | WJ26X22155 | Main Board |
|
$ 167.10 | |||||
| 15 | WJ27X20099 | Transformer |
|
- | |||||
| 16 | WJ20X20068 | Capacitor |
|
- | |||||
| 17 | WJ02X20069 | Capacitor Clamp |
|
- | |||||
| 18 | WJ05X20076 | Control Box |
|
- | |||||
| 19 | WJ53X23897 | Capillary Tube |
|
- | |||||
| 20 | WJ76X23886 | Electric Cover Box |
|
- | |||||
| 22 | WJ66X10101 | Bracket Guide |
|
- | |||||
| 23 | WJ35X23903 | Main Harness |
|
- | |||||
| 24 | WJ76X23889 | Indoor Fan Shroud Lower |
|
- | |||||
| 25 | WJ35X22193 | Power Cord |
|
- | |||||
| 26 | WJ87X23899 | Evaporator Asm |
|
- | |||||
| 27 | WJ01X22194 | Strain Relief |
|
- | |||||
| 28 | WJ43X22408 | Evaporator Side Plate |
|
- | |||||
| 29 | WJ26X23867 | Ui Board Support |
|
- | |||||
| 30 | WJ26X23879 | Ui Board |
|
$ 111.99 | |||||
| 31 | WJ26X23868 | Ui Board Cover |
|
- | |||||
| 37 | WJ85X23892 | Filter |
|
- | |||||
| 39 | WG01A01092 | Top Rail (Replaces: WJ86X21742) |
|
Immediately | $ 23.82 | ||||
| 40 | WJ26X23870 | Remote Control |
|
- | |||||
| 41 | WJ01X21741 | Installation Asm |
|
- | |||||
| 85 | WJ05X20122 | Plug |
|
- | |||||
| 9999 | 31-30828 | Pm Mini Manual |
|
- | |||||
| 9999 | 49-7817 | Pm Use And Care |
|
- |
