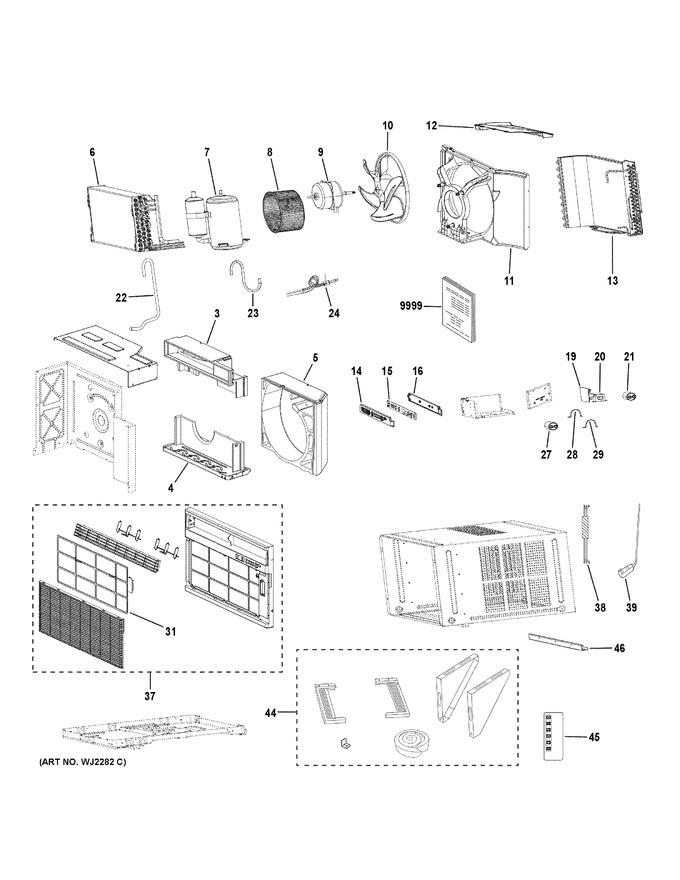

Room Air Conditioner
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WJ76X23950 | Indoor Fan Shroud, Upper |
|
- | |||||
| 4 | WJ76X23951 | Indoor Fan Shroud, Middle |
|
- | |||||
| 5 | WJ76X23949 | Indoor Fan Shroud, Lower |
|
- | |||||
| 6 | WJ87X23952 | Evaporator Asm |
|
- | |||||
| 7 | WJ98X22168 | Compressor |
|
- | |||||
| 8 | WJ76X22121 | Indoor Fan Blade |
|
- | |||||
| 9 | WJ94X22171 | Fan Motor |
|
- | |||||
| 10 | WJ73X20130 | Axial Fan |
|
- | |||||
| 11 | WJ76X23948 | Outdoor Fan Shroud |
|
- | |||||
| 12 | WJ76X20154 | Rear Cover Board |
|
- | |||||
| 13 | WJ88X22200 | Condenser Asm |
|
- | |||||
| 14 | WJ26X23868 | Ui Board Cover |
|
- | |||||
| 15 | WJ26X23879 | Ui Board |
|
$ 111.99 | |||||
| 16 | WJ26X23867 | Ui Board Support |
|
- | |||||
| 19 | WJ26X22155 | Main Board |
|
$ 167.10 | |||||
| 20 | WJ27X23906 | Transformer |
|
- | |||||
| 21 | WJ20X22165 | Capacitor |
|
- | |||||
| 22 | WJ53X22172 | Sucton Tube |
|
- | |||||
| 23 | WJ53X22169 | Discharge Tube |
|
- | |||||
| 24 | WJ53X22167 | Capillary Tube |
|
- | |||||
| 27 | WJ20X22164 | Capacitor |
|
- | |||||
| 28 | WJ01X23946 | Capacitor Clam |
|
- | |||||
| 29 | WJ01X22166 | Capacitor Clamp |
|
- | |||||
| 31 | WJ85X23947 | Filter |
|
- | |||||
| 37 | WJ71X23953 | Front Panel Assy |
|
- | |||||
| 38 | WJ36X10023 | Harness |
|
- | |||||
| 39 | WJ35X20091 | Power Cord |
|
- | |||||
| 44 | WJ43X22122 | Installation Parts |
|
- | |||||
| 45 | WJ26X23870 | Remote Control |
|
- | |||||
| 46 | WJ65X22125 | Top Rail |
|
- | |||||
| 85 | WJ05X20122 | Plug |
|
- | |||||
| 9999 | 49-7818 | Pm Use And Care |
|
- | |||||
| 9999 | 31-30830 | Pm Mini Manual |
|
- |
