Room Air Conditioner
New Model Search:

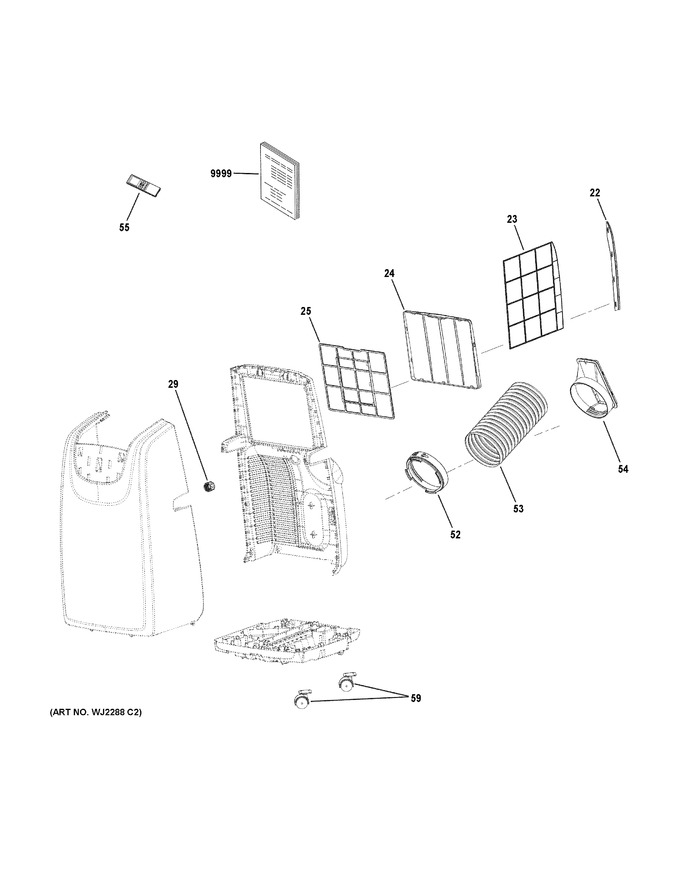

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 22 | WJ85X23123 | Filter Frame Of Lower Panel |
|
- | |||||
| 23 | WJ85X23126 | Filter Of Lower Panel |
|
- | |||||
| 24 | WJ85X23124 | Filter Frame Of Upper Panel |
|
- | |||||
| 25 | WJ85X23125 | Filet Of Upper Panel |
|
- | |||||
| 29 | WJ76X23122 | Big Drain Cover Middle |
|
- | |||||
| 52 | WJ35X23121 | Hose Connector |
|
$ 6.86 | |||||
| 53 | WJ65X22920 | Exhaust Hose |
|
$ 68.70 | |||||
| 54 | WJ65X22917 | Connector |
|
$ 20.52 | |||||
| 55 | WJ26X23127 | Remote Control |
|
- | |||||
| 59 | WJ01X23120 | Universal Wheel |
|
- | |||||
| 60 | WJ71X24857 | Main Window Panel- Single Hose |
|
- | |||||
| 61 | WJ71X24858 | Main Window Panel- Dual Hose |
|
- | |||||
| 62 | WJ71X24859 | Extension Panel |
|
- | |||||
| 9999 | 49-7779 | Pm Use & Care |
|
- |
