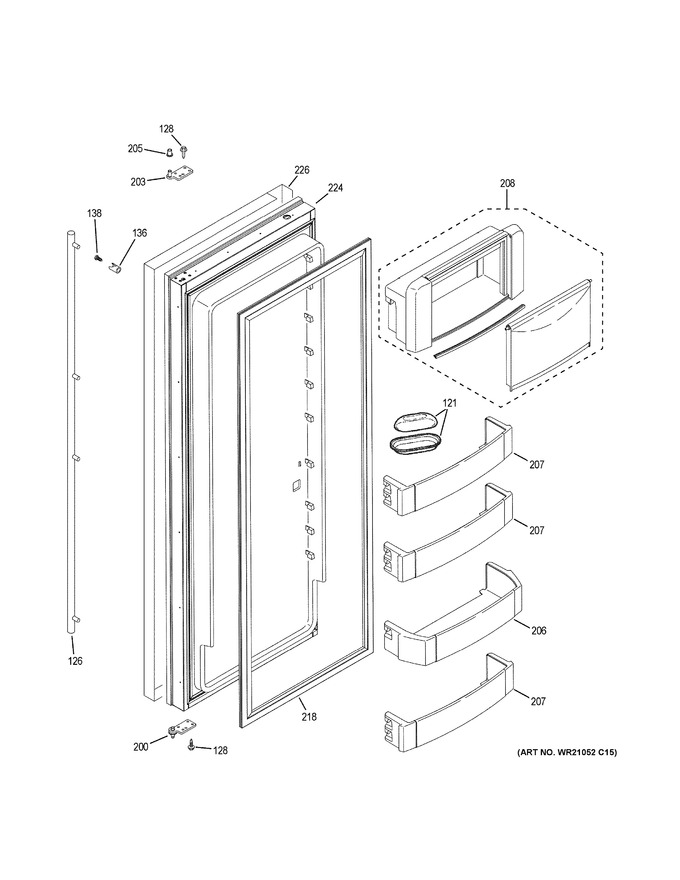

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 121 | WR19X10005 | Butter Dish And Cover |
|
- | |||||
| 126 | WR12X29415 | Euro Handle |
|
- | |||||
| 128 | WR01X21024 | Screw, 1/4-20 Tt Bht .87 |
|
- | |||||
| 136 | WR02X27900 | Euro Handle Stand Off |
|
- | |||||
| 138 | WB01T10095 | Scr 10-32 Hwh I 13/16 |
|
- | |||||
| 200 | WR13X10657 | Hinge Door Btm |
|
- | |||||
| 203 | WR13X25052 | Hinge Asm Door Top Rh |
|
- | |||||
| 205 | WG03A00012 | Bushing Hinge Top (Replaces: WR02X10954) |
|
$ 49.33 | |||||
| 206 | WR71X25590 | Bin Asm Gallon 36 |
|
- | |||||
| 207 | WR71X25604 | Bin Door Asm 36/48 |
|
- | |||||
| 208 | WR71X26791 | Dairy Bin Door Asm 36 |
|
- | |||||
| 218 | WR24X10203 | Gasket Door |
|
- | |||||
| 224 | WR78X23219 | Door Foamed Asm Ff Sxs 36" |
|
- | |||||
| 226 | WR78X27019 | 36" Euro Door Wrap Ff |
|
- |
