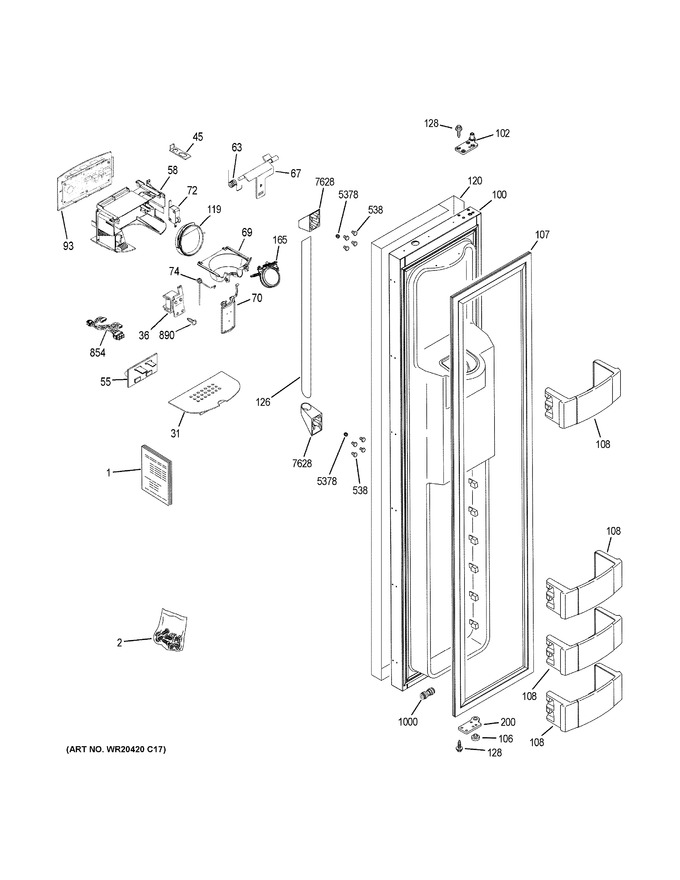

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	31-51991		Pm Mini Manual		Appelez-nous	-
1	31-1000002		Pm Install Instructions		Appelez-nous	-
2	WR01X10304		Hardware Pack		Appelez-nous	-
31	WR17X23167		Grill Drip Dispenser				$ 179.84
36	WR01F01784		Solenoid Asm   (Replaces: WR62X10055)				$ 88.99
45	WR2X8818		Retainer Recess Door		Appelez-nous	-
55	WR01F00145		Board Asm Disp Lighting   (Replaces: WR55X10899)				$ 15.88
58	WR17X12771		Housing Shield Disp		Appelez-nous	-
63	WG03A00047		Spring Recess Door   (Replaces: WR02X10585)			Immediately	$ 3.97
67	WR01L00935		Crank Door Recess   (Replaces: WR17X10706)				$ 12.71
69	WR01F00833		Funnel Ice Disp   (Replaces: WR17X12120)				$ 54.09
70	WR17X23460		Paddle Dispenser		Appelez-nous	-
72	WR23X10783		Switch		Appelez-nous	-
74	WR01A00922		Spring Torsion   (Replaces: WR02X12256)				$ 23.82
93	WR55X11048		Glass Disp Panel Subasly		Appelez-nous	-
100	WR78X30040		Freezer Door		Appelez-nous	-
102	WR13X10238		Top Sxs Fz Door Hinge As		Appelez-nous	-
106	WR01X10297		Fz Bottom Hinge Bushing		Appelez-nous	-
107	WR24X10204		Gasket Door		Appelez-nous	-
108	WR71X25605		Bin Door Asm 36/42		Appelez-nous	-
119	WR01L01914		Door Recess Assy   (Replaces: WR17X3093)				$ 65.21
120	WR78X27026		42" Pro Disp Door Wrap Fz		Appelez-nous	-
126	WR12X20950		Handle Ss		Appelez-nous	-
128	WR01X21024		Screw, 1/4-20 Tt Bht .87		Appelez-nous	-
165	WR17X30100		Duct Door With Heater		Appelez-nous	-
200	WR13X10657		Hinge Door Btm		Appelez-nous	-
538	WR01X21110		Scr 1/4-20x.5 Hex Cap Ss		Appelez-nous	-
854	WR23X23462		Harness Recess Dispenser		Appelez-nous	-
890	WG04A01239		#10x1\2 Ph Sms   (Replaces: WD2X295)				$ 3.97
1000	WR02X24203		Connector Water Line		Appelez-nous	-
5378	WR01A00759		Set Screw   (Replaces: WR02X11769)				$ 22.23
7628	WR02X26879		Handle Cap End		Appelez-nous	-
