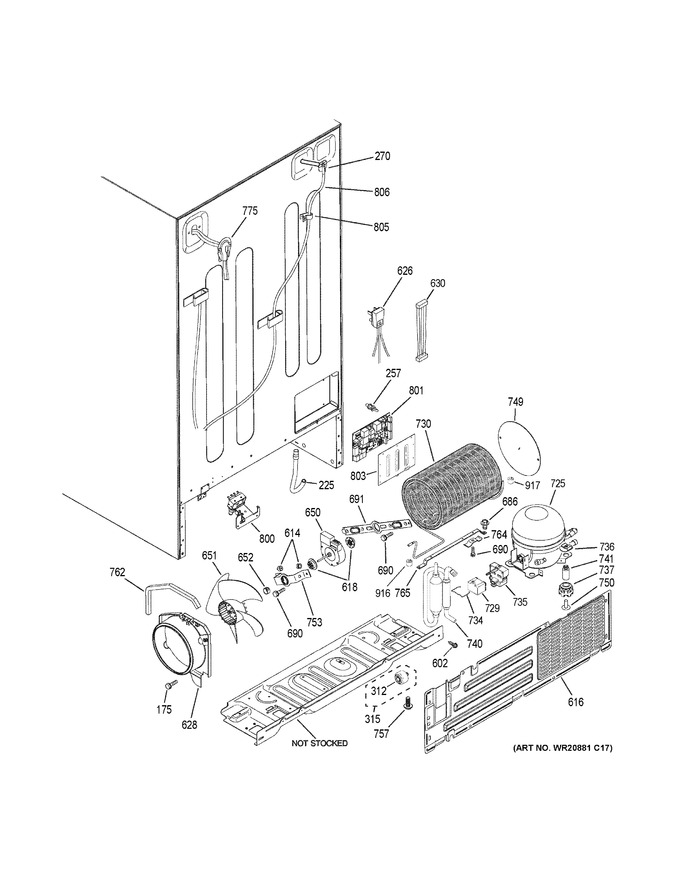

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
Evaporator Instructions
Freezer Door
Freezer Section
Freezer Shelves
Fresh Food Door
Fresh Food Section
Fresh Food Shelves
Ice Maker & Dispenser
Machine Compartment
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 175 | WR01X10035 | Screw 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 225 | WR01F01884 | Tube Drain (Replaces: WR02X11426) |
|
Immediately | $ 36.53 | ||||
| 257 | WR02X10663 | Stand Off |
|
- | |||||
| 270 | WR17X11506 | Grommet And Tube Asm |
|
- | |||||
| 312 | WG03L06838 | Wheel Mobility (Replaces: WR02X10695) |
|
$ 19.06 | |||||
| 315 | WR02X11998 | Mobility Wheel Kit |
|
- | |||||
| 602 | WR01X10592 | Scr 1/4-14 Ab Ihw 3/4 S |
|
- | |||||
| 614 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 616 | WR82X22767 | Cover Access Asm |
|
- | |||||
| 618 | WR01A00579 | Grommet Evap Fan (Replaces: WR02X11331) |
|
$ 3.97 | |||||
| 626 | WR23X26707 | Harness Cab Lower |
|
- | |||||
| 628 | WR01L04391 | Shroud Condenser (Replaces: WR17X12668) |
|
$ 26.20 | |||||
| 630 | WR23X10505 | Harness Board Indiv |
|
- | |||||
| 650 | WR60X10216 | Motor Dc Cond Fan |
|
- | |||||
| 651 | WR60X24484 | Blade Conf Fan Asm |
|
- | |||||
| 652 | WG03F01616 | Ring Compression (Replaces: WR02X12149) |
|
$ 3.97 | |||||
| 686 | WR01X10252 | Screw 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 690 | WR1X1466 | Scr 8-32 T Hxw 3/8 S |
|
- | |||||
| 691 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 725 | WG03F00141 | Compressor Kit Egys60 (Replaces: WR87X10224) |
|
Immediately | $ 797.08 | ||||
| 729 | WR55X23731 | Capacitor 12 Uf |
|
- | |||||
| 730 | WR84X10078 | Condenser & Brkt Asm |
|
- | |||||
| 734 | WR02X22564 | Clip Retainer Combo |
|
- | |||||
| 735 | WR08X21100 | Tsd Combo |
|
- | |||||
| 736 | WR2X8203 | Clip |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 740 | WG03A03157 | P/s Dryer Kit R134a (Replaces: WR86X96) |
|
Immediately | $ 153.40 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 749 | WR17X13159 | Baffle Cond Air |
|
- | |||||
| 750 | WR1X1786 | Scr 10-32 Tr 1/2 |
|
- | |||||
| 753 | WR02X10521 | Brkt Cond Fan (mtg) |
|
- | |||||
| 757 | WR01X10622 | Scr 10-32 B Ihxw 1/2 |
|
- | |||||
| 762 | WR14X10199 | Foam Strip Se Adh |
|
- | |||||
| 764 | WR2X9000 | Clip, Cond Mnt |
|
- | |||||
| 765 | WR17X10763 | Bracket Condenser Bar |
|
- | |||||
| 775 | WR17X13124 | Cover Water Line |
|
- | |||||
| 800 | WR57X10040 | Water Valve Assy W/o Guard |
|
$ 71.10 | |||||
| 801 | WR55X28886 | Board Asm Main Control |
|
- | |||||
| 803 | WR02X12025 | Main Board Enclosure Asm |
|
- | |||||
| 805 | WR02X12265 | Clamp Tube |
|
- | |||||
| 806 | WR01F01881 | Tube Plastic (Replaces: WR17X11625) |
|
$ 15.88 | |||||
| 916 | WR02X13569 | Sound Damper |
|
- | |||||
| 917 | WR02X13573 | Sound Damper |
|
- |
