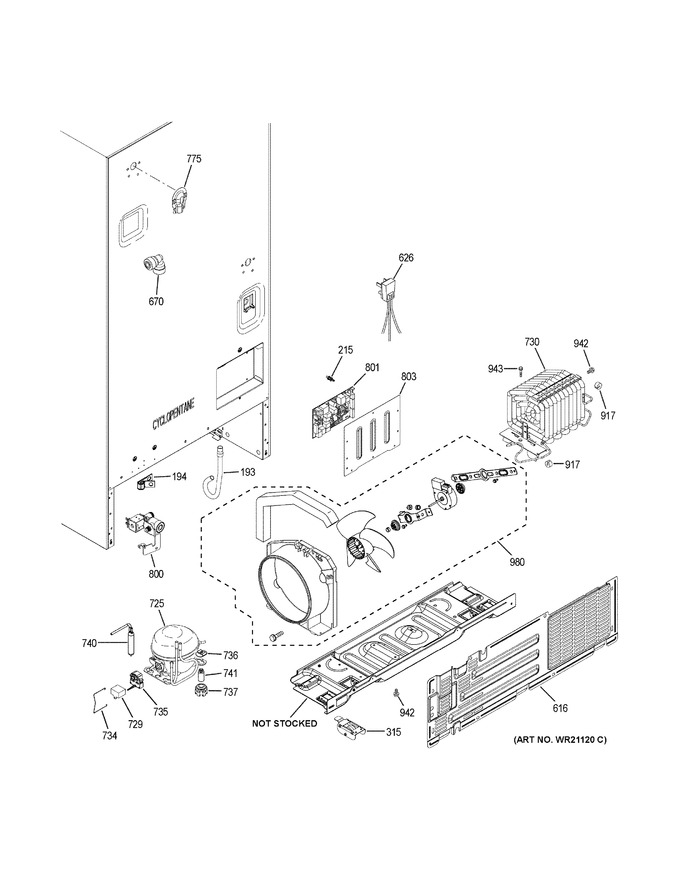

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 193 | WR01F01884 | Tube Drain (Replaces: WR02X11426) |
|
Immediately | $ 32.88 | ||||
| 194 | WR01X10684 | Clamp Cable |
|
- | |||||
| 215 | WR02X10663 | Stand Off |
|
- | |||||
| 315 | WR02X24943 | Mobility Back Asm |
|
- | |||||
| 616 | WR01L14249 | Access Cover (Replaces: WR82X10103) |
|
$ 56.53 | |||||
| 626 | WR23X30131 | Power Cord |
|
- | |||||
| 626 | WR23X108 | Power Cord |
|
- | |||||
| 670 | WR02X25048 | Union Connector 1/4 |
|
- | |||||
| 725 | WG03F00141 | Compressor Kit Egys60 (Replaces: WR87X10224) |
|
Immediately | $ 717.37 | ||||
| 729 | WR55X23731 | Capacitor 12 Uf |
|
- | |||||
| 730 | WR87X24809 | Condenser Asm |
|
- | |||||
| 734 | WR02X26735 | Clip Retainer Mei |
|
- | |||||
| 735 | WR08X26736 | Overload Ptcr Combo |
|
- | |||||
| 736 | WR2X8203 | Clip |
|
- | |||||
| 737 | WR01F00846 | Grommet (Replaces: WR02X10099) |
|
$ 7.15 | |||||
| 740 | WG03A03157 | P/s Dryer Kit R134a (Replaces: WR86X96) |
|
Immediately | $ 138.06 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 775 | WR17X13124 | Cover Water Line |
|
- | |||||
| 800 | WR57X26303 | Valve & Guard Asm |
|
- | |||||
| 801 | WR55X29200 | Board Asm Main Control |
|
- | |||||
| 803 | WR02X12025 | Main Board Enclosure Asm |
|
- | |||||
| 917 | WR02X13573 | Sound Damper |
|
- | |||||
| 942 | WR01X10252 | Screw 10-32 Tt Hxw 5/16 S |
|
- | |||||
| 943 | WR01X25308 | Scr 10-16 B Hxw 1/4 S |
|
- | |||||
| 980 | WR60X25869 | Cond Fan & Housing Asm |
|
- | |||||
| 982 | WR02X13774 | Tube Lead |
|
- | |||||
| 983 | WR02X10521 | Brkt Cond Fan (mtg) |
|
- | |||||
| 984 | WR01A00315 | Grommet Fan Motor (Replaces: WR02X10520) |
|
$ 3.75 | |||||
| 985 | WR02X10593 | Bracket Cond Fan (rear) |
|
- | |||||
| 986 | WR01A00315 | Grommet Fan Motor (Replaces: WR02X10520) |
|
$ 3.75 | |||||
| 987 | WR60X24484 | Blade Conf Fan Asm |
|
- | |||||
| 988 | WR60X24483 | Motor Dc Cond Fan |
|
- |
