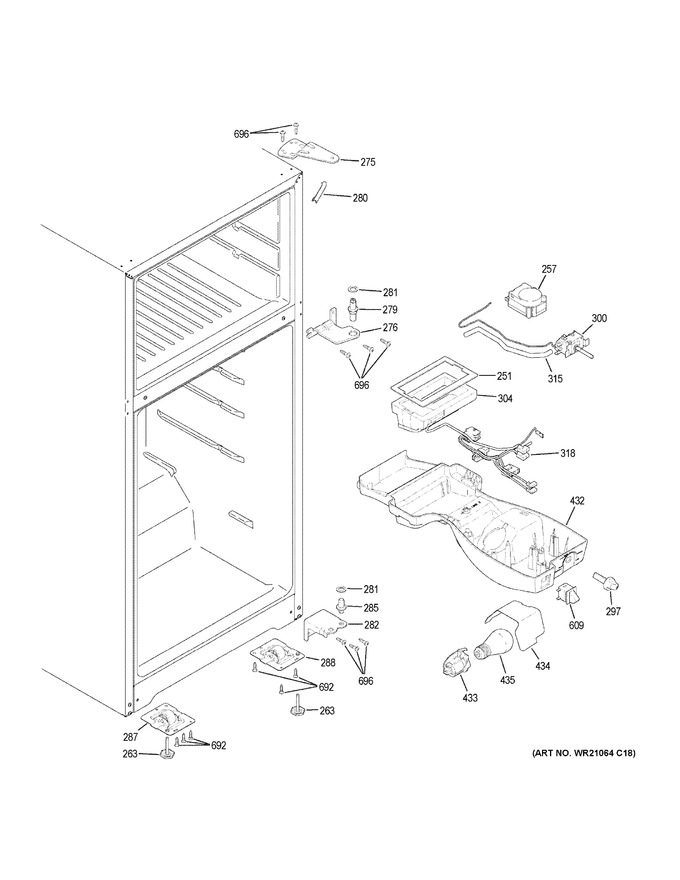

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 251 | WR02X23409 | Gasket Supply Foam |
|
- | |||||
| 257 | WG03F00975 | Control Defrost (Replaces: WR09X10049) |
|
Immediately | $ 81.73 | ||||
| 263 | WG03F01630 | Slider Adj (Replaces: WR2X7877) |
|
$ 18.13 | |||||
| 275 | WR13X21172 | White Hinge Top And Pin Asm |
|
- | |||||
| 276 | WR13X21174 | Hinge Center |
|
- | |||||
| 279 | WR02X21173 | Pin Hinge Ctr |
|
- | |||||
| 280 | WG03L00745 | Cap Corner Oc White (Replaces: WR02X10703) |
|
$ 6.09 | |||||
| 281 | WG03L08792 | Washer Hinge Brown (Replaces: WR01X10146) |
|
Immediately | $ 3.97 | ||||
| 282 | WR13X21175 | Hinge Bottom |
|
- | |||||
| 285 | WR02X27092 | Pin Hinge Bottom |
|
- | |||||
| 287 | WR02X21258 | Mobility Asm Front Lh |
|
- | |||||
| 288 | WR02X21259 | Mobility Asm Front Rh |
|
- | |||||
| 297 | WR02X21250 | Knob Control |
|
- | |||||
| 300 | WR09X26872 | Control Temp |
|
- | |||||
| 304 | WR02X21253 | Nozzle Supply Foam |
|
- | |||||
| 315 | WG03L00275 | Sleeve Vinyl (Replaces: WR2X8344) |
|
$ 30.98 | |||||
| 318 | WR55X21257 | Harness Mech Cntrl |
|
- | |||||
| 432 | WR02X21256 | Housing Control Em |
|
- | |||||
| 433 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 8.34 | |||||
| 434 | WR02X26086 | Shield Reflector |
|
- | |||||
| 435 | 40A15 | 40watt 15amp |
|
Immediately | $ 1.98 | ||||
| 609 | WR23X23343 | Switch Light |
|
- | |||||
| 692 | WR01X23006 | Scr 8-32 Ca Hxw 1/2 Ns |
|
- | |||||
| 696 | WR01X26527 | Scr 12-24 Tt Pnpsd .785 |
|
- |
