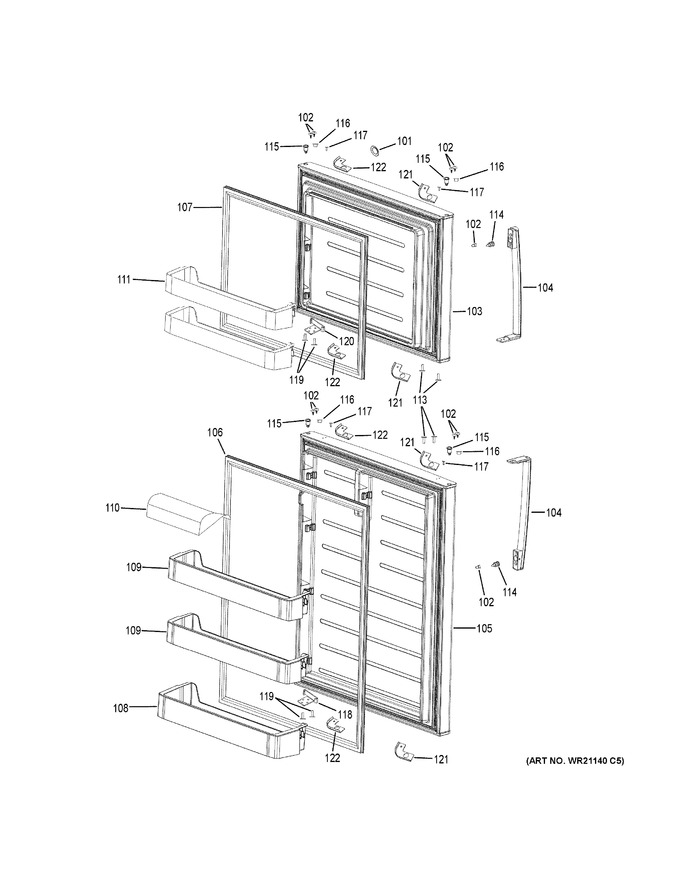

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
101	WR04X10222		Badge Asm Ge		Appelez-nous	-
102	WR01X27321		Plug Screw Hole White		Appelez-nous	-
103	WR78X27434		Refrigerator Door - Freezer White		Appelez-nous	-
104	WR12X27039		Handle Plastic White		Appelez-nous	-
105	WR78X27435		Refrigerator Door - Fresh Food White		Appelez-nous	-
106	WR14X27429		Refrigerator Gasket - Fresh Food White		Appelez-nous	-
107	WR14X27426		Refrigerator Gasket - Freezer White		Appelez-nous	-
108	WR71X27452		Fresh Food Door - Gallon Bin White				$ 192.33
109	WR71X27449		Fresh Food Door - Rail Bin White		Appelez-nous	-
110	WR71X27451		Fresh Food Door - Dairy Bin Cover		Appelez-nous	-
111	WR71X27450		Fresh Food Door Rail Bin		Appelez-nous	-
113	WR01X21151		Scr 10-16 Ab Trp 3/4 Nbs		Appelez-nous	-
113	WR01X27333		Screw 3.9mm X 16mm		Appelez-nous	-
114	WR01X28623		Door Handle Fastener		Appelez-nous	-
115	WR01X27355		Door Thimble White		Appelez-nous	-
116	WR01X27354		Door Thimble Plug White		Appelez-nous	-
117	WR01X27330		Screw #8 X 9/16"		Appelez-nous	-
118	WR01X27349		Fresh Food Door Stop		Appelez-nous	-
119	WR01X27336		Screw Ph St 3.9x19		Appelez-nous	-
120	WR01X27350		Freezer Door Stop		Appelez-nous	-
121	WR02X27281		Cap Door Right White				$ 38.48
122	WR02X27280		Cap Door Left White		Appelez-nous	-
