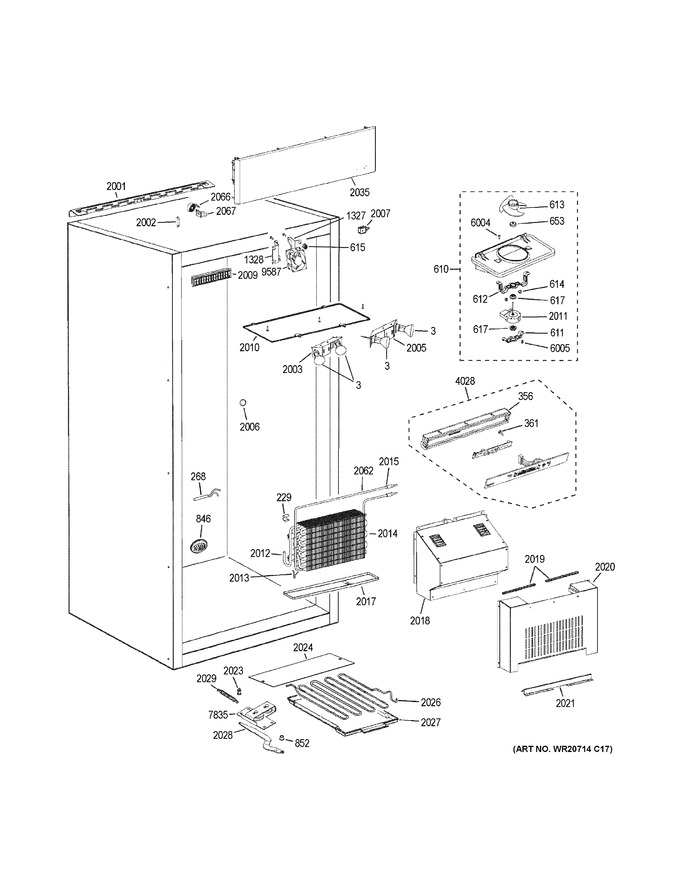

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 3 | WR02X13308 | Bulb Halogen Light |
|
- | |||||
| 229 | WR01A00194 | Clip Evap Thermistor (Replaces: WR02X10552) |
|
$ 4.17 | |||||
| 268 | WR55X10711 | Sensor Temperature |
|
- | |||||
| 356 | WR17X12676 | Housing Control |
|
- | |||||
| 361 | WR02X11200 | 4-40 X 1/4 Ph Sms |
|
- | |||||
| 610 | WR60X10283 | Fan & Orifice Evap Asm |
|
- | |||||
| 611 | WR02X10764 | Bracket Evap Fan Btm |
|
- | |||||
| 612 | WR02X10653 | Bracket Orifice Fan |
|
- | |||||
| 613 | WR60X10208 | Blade Evap Fan Asm |
|
- | |||||
| 614 | WR01A00163 | Bumper (Replaces: WR02X10540) |
|
Immediately | $ 6.35 | ||||
| 615 | WR17X12252 | Grommet Evap Fan |
|
- | |||||
| 617 | WG03F00306 | Grommet Evap Fan (Replaces: WR02X12008) |
|
Immediately | $ 7.24 | ||||
| 653 | WR01F00744 | Cap Dust (Replaces: WR02X10322) |
|
$ 37.17 | |||||
| 846 | WR01L04066 | Grille Sensor (Replaces: WR02X10647) |
|
$ 3.97 | |||||
| 852 | WR01X10879 | Bushing Arm |
|
- | |||||
| 1327 | WR02X13024 | Bracket Top Fan |
|
- | |||||
| 1328 | WR02X13011 | Bracket Top Fan Lh |
|
- | |||||
| 2001 | WR02X42385 | Wall Mounting Bracket |
|
- | |||||
| 2001 | WR02X21845 | Bracket Wall Mounting |
|
- | |||||
| 2002 | WG03F00293 | Fuse, 2 Amp (Replaces: WR23X10269) |
|
$ 89.11 | |||||
| 2003 | WR74X10309 | Top Light Asm Lh |
|
- | |||||
| 2005 | WR74X10308 | Top Light Asm Rh |
|
- | |||||
| 2006 | WR02X10154 | Plug Button #413 I/m |
|
- | |||||
| 2007 | WR02X12585 | Twist Support |
|
- | |||||
| 2009 | WR02X13034 | Louver Sd |
|
- | |||||
| 2010 | WR17X12677 | Ceiling Light Shield Sd |
|
- | |||||
| 2011 | WR60X10284 | Motor Dc Evap Fan Asm |
|
$ 262.35 | |||||
| 2012 | WR01X10884 | Clip Defrost Heater |
|
- | |||||
| 2013 | WR02X13221 | Tube Jump Suct Evap Asm |
|
- | |||||
| 2014 | WG03F00254 | Evap Coil (Replaces: WR85X10017) |
|
$ 774.64 | |||||
| 2015 | WR51X10113 | Defrost Heater |
|
- | |||||
| 2017 | WR32X23805 | Pan Drain Asm |
|
- | |||||
| 2018 | WR17X12693 | Evap Fan Cover Foam Asm |
|
- | |||||
| 2019 | WR38X10190 | Edge Trim |
|
- | |||||
| 2020 | WR74X23806 | Evap Cover Asm |
|
- | |||||
| 2021 | WR17X12711 | Catch Evap Trough |
|
- | |||||
| 2023 | WG03A00050 | Stud Spring Ff Door (Replaces: WR01X10258) |
|
$ 34.02 | |||||
| 2024 | WR02X13038 | Pan Protector Rear Cover |
|
- | |||||
| 2026 | WR84X23767 | Condenser Bottom Sd |
|
- | |||||
| 2027 | WR17X11016 | Drain Pan |
|
- | |||||
| 2028 | WR02X10979 | Link Actuator Lh |
|
- | |||||
| 2029 | WR01X10856 | Spring Closure |
|
- | |||||
| 2035 | WR74X10343 | Custom Grill Asm |
|
- | |||||
| 2062 | WR09X29404 | Heater Harness Tod |
|
- | |||||
| 2066 | WR62X10073 | Transformer Light 160va |
|
- | |||||
| 2067 | WR01X10881 | Bracket Light Breaker |
|
- | |||||
| 4028 | WR55X29416 | Freezer Hmi Control |
|
- | |||||
| 6004 | WR01X10620 | Scr 10-32 |
|
- | |||||
| 6005 | WG04A01239 | #10x1\2 Ph Sms (Replaces: WD2X295) |
|
$ 3.97 | |||||
| 7835 | WR02X13316 | Closure Mech Rh |
|
- | |||||
| 9587 | WR60X10225 | Fan Fresh Food |
|
- |
