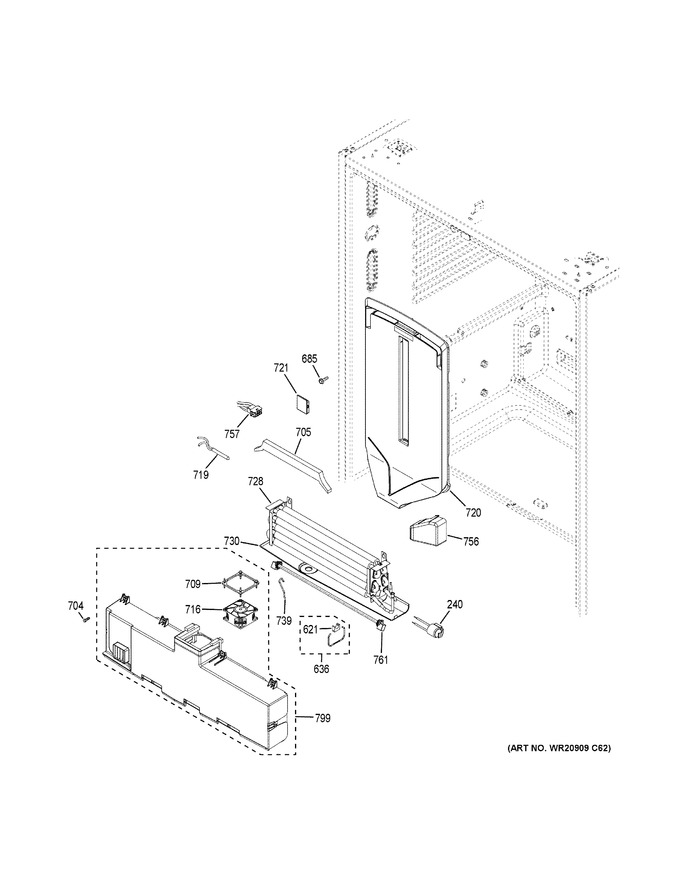

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 240 | WR50X10109 | Thermostat Defrost Ff |
|
- | |||||
| 621 | WR02X10518 | Holder Element |
|
- | |||||
| 636 | WR02X13678 | Holder Element Asm |
|
- | |||||
| 685 | WR02X29370 | Screw 8-18 Ab Hxw 1/2 S |
|
- | |||||
| 704 | WR01X11061 | Scr 8-18 Hi/lo Hwx 3/4 |
|
- | |||||
| 705 | WR02X29333 | Foam Seal |
|
- | |||||
| 709 | WR02X30166 | Fresh Food Fan Mounting Gasket |
|
- | |||||
| 716 | WR60X29099 | Refrigerator Fresh Food Fan |
|
- | |||||
| 719 | WR55X11152 | Sensor Temperature |
|
- | |||||
| 720 | WR17X28922 | Fresh Food Duct Tower |
|
- | |||||
| 721 | WR02X29328 | Center Track Screw Cover |
|
- | |||||
| 728 | WR85X10154 | Evap & Tube Asm Ff |
|
- | |||||
| 730 | WR17X13091 | Trough Drain Ff |
|
- | |||||
| 739 | WR51X10133 | Heater Conduction Ff |
|
- | |||||
| 756 | WR17X28921 | Fresh Food Fan Connector Cover |
|
- | |||||
| 757 | WR23X23626 | Heater Harness Ff |
|
- | |||||
| 761 | WR51X10132 | Heater Def Asm Ff |
|
- | |||||
| 799 | WR17X30167 | Fresh Food Evaporator Cover |
|
- |
