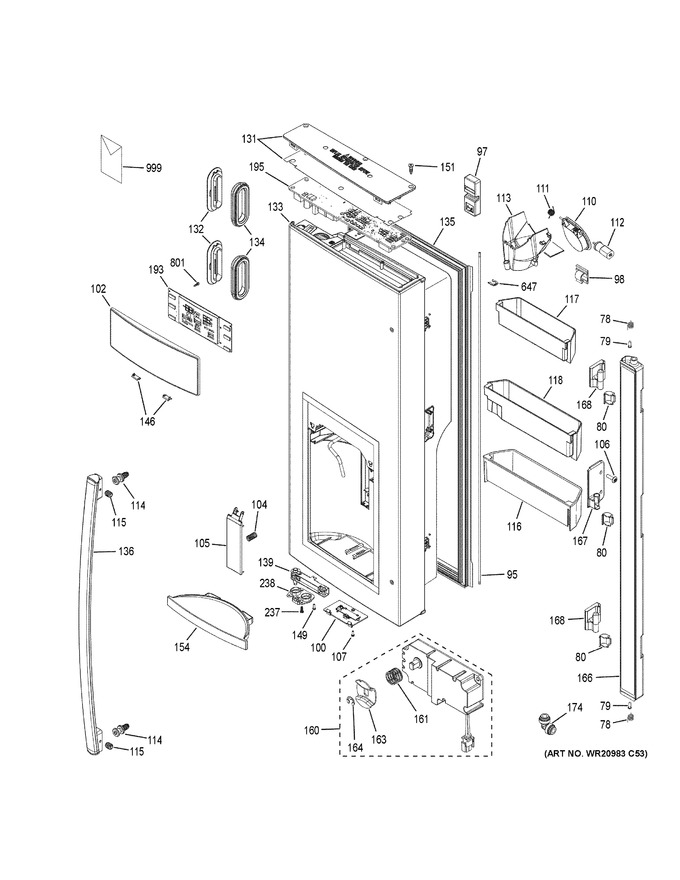

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
78	WG03L05095		Spring Hinge Mullion   (Replaces: WR01X11052)			Immediately	$ 10.86
79	WR01X11053		Sleeve Spring Mullion		Appelez-nous	-
80	WR02X13739		Hinge Cap		Appelez-nous	-
95	WR02X21126		Tube Pex Lh Door		Appelez-nous	-
97	WR02X13777		Insert Funnel		Appelez-nous	-
98	WR01X11064		Clip Phgl		Appelez-nous	-
100	WR55X23636		Cover Led Fz Asm		Appelez-nous	-
102	WR17X26326		Cap Touch Std Stainless		Appelez-nous	-
104	WR01X11027		Spring		Appelez-nous	-
105	WG03L00831		Cover Paddle Asm Ss   (Replaces: WR17X13060)				$ 73.11
106	WR01X11054		Scr 8-18 Flp 1/2 S		Appelez-nous	-
107	WG03A00428		Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
110	WR17X13057		Duct Door Asm		Appelez-nous	-
111	WR01X11017		Spring Duct Door		Appelez-nous	-
112	WR60X10344		Motor Duct Door		Appelez-nous	-
113	WR17X13099		Funnel Ice		Appelez-nous	-
114	WR01A01801		Fastener Door Handle   (Replaces: WR01X11007)			Immediately	$ 12.71
115	WG03A01608		Set Screw   (Replaces: WR01X11014)			Immediately	$ 6.35
116	WR71X24976		Bin Door Ice Btm		Appelez-nous	-
117	WR71X11045		Bin Ice Door Top Lh		Appelez-nous	-
118	WR71X11046		Bin Ice Door Mid Lh		Appelez-nous	-
131	WR17X13205		Pcb Cover Asm Dgy		Appelez-nous	-
132	WR14X25124		Collar Port		Appelez-nous	-
133	WR78X26311		Door Disp Ff Lh Ss		Appelez-nous	-
134	WR14X10364		Port Gasket		Appelez-nous	-
135	WG03L09792		Gasket Ff Dgy   (Replaces: WR14X10377)				$ 145.45
136	WR12X23647		Arc Handle Asm Ff		Appelez-nous	-
139	WR11X23034		Closure Door Asm Lh		Appelez-nous	-
146	WR02X13655		Shield Led Light				$ 19.05
149	WG03A00428		Screw 8-18 Hi/lo 5/8   (Replaces: WR01X10196)				$ 4.20
151	WR01X11028		Scr 8-18 Flp 1/2 S		Appelez-nous	-
154	WR17X26325		Drip Tray Stainless		Appelez-nous	-
160	WR60X10345		Auger Motor Asm		Appelez-nous	-
161	WR02X13645		Spring Clutch Am		Appelez-nous	-
163	WR02X13647		Clutch Coupling Am		Appelez-nous	-
164	WR02X13648		E Clip		Appelez-nous	-
166	WR17X13240		Mullion Articulating Asm		Appelez-nous	-
167	WR13X10984		Hinge Center Mullion		Appelez-nous	-
168	WR13X10985		Hinge Mullion		Appelez-nous	-
174	WR02X13737		Connector 90 Deg 5/16		Appelez-nous	-
193	WR55X26258		Pcb Asm Led Icon Ui		Appelez-nous	-
195	WR55X23065		Pcb Asm Door Control		Appelez-nous	-
237	WR01X11032		Scr 10-24 Ab Rnt 20 5/8		Appelez-nous	-
238	WR02X13634		Stop Door Rh/lh Asm		Appelez-nous	-
647	WR01X11041		Quick Clip Connector 1/4		Appelez-nous	-
801	WD02X10129		6-19 X 1/4 Torx Pan Head		Appelez-nous	-
999	31-51962		Pm Mini Manual Service		Appelez-nous	-
