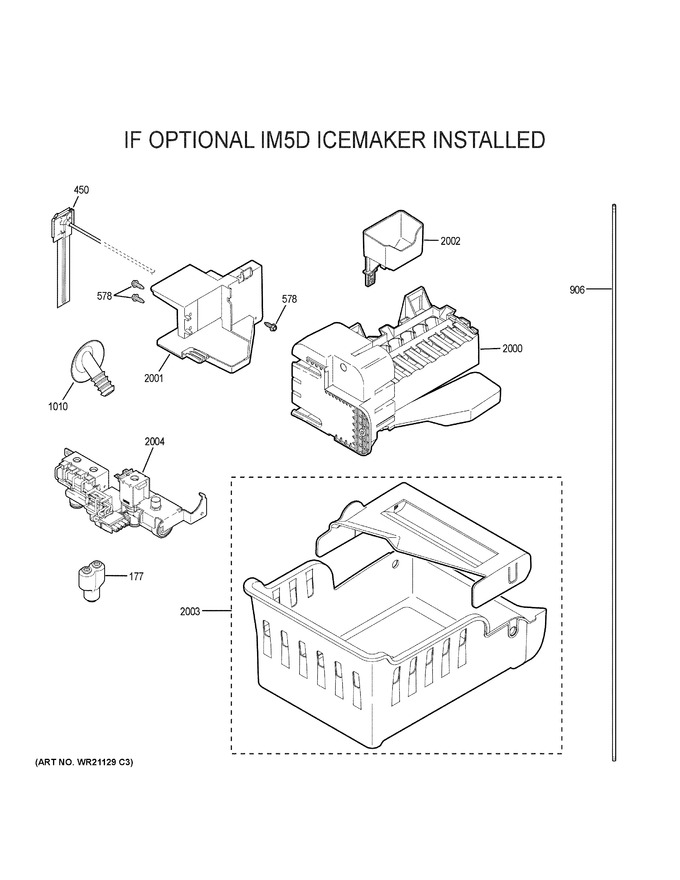

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
177	WR02X13723		Coupler 1/4 "y"		Appelez-nous	-
450	WR02X20621		Tube Fz Im Fill Htr Asm		Appelez-nous	-
578	WR01X11012		Scr 8-18 Ab Hxw 9/16 S		Appelez-nous	-
599	WR01X11032		Scr 10-24 Ab Rnt 20 5/8		Appelez-nous	-
906	WR02X13699		Tube Pex Mc Valve		Appelez-nous	-
907	WR02X13699		Tube Pex Mc Valve		Appelez-nous	-
1010	WR02X13760		Grommet Ff Liner		Appelez-nous	-
2000	WR30X25766		Icemaker Asm		Appelez-nous	-
2001	WR17X23054		Housing Wire Im Fz		Appelez-nous	-
2002	WR30X25485		Cup Fill Fz Im		Appelez-nous	-
2003	WR30X23076		Bucket Ice Asm		Appelez-nous	-
2004	WR57X27527		Valve Double Im Asm		Appelez-nous	-
