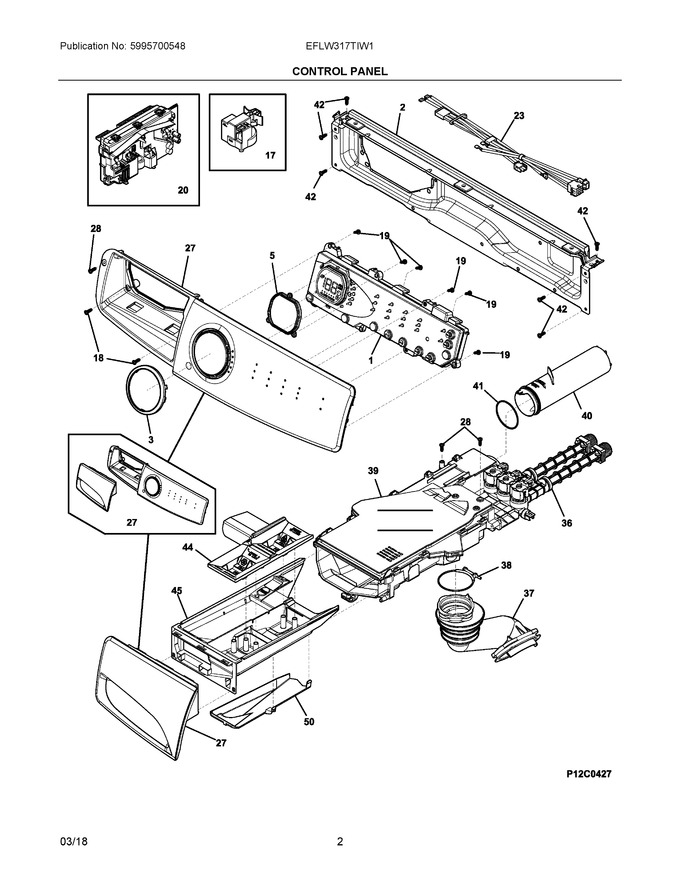

01 - Cover Sheet


02 - Control Panel


03 - Cabinet/top


04 - Motor/tub


05 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	5304510357		Board Assembly, User Interface, W/housing				$ 366.28
2	5304505086		Bracket, Control Panel				$ 78.72
3	5304505044		Trim, Ring, Chrome				$ 42.51
5	5304505045		Seal, Display Area		Appelez-nous	-
17	5304505436		Sensor Switch, Pressure			Immediately	$ 57.38
18	131302800		Screw, Quadrex Ph, 10-16ab X 0.5			Immediately	$ 29.53
19	5304505441		Screw, Pph B, 6-20x.375				$ 7.23
20	5304515626		Board Assembly, Main Control, W/housing			Immediately	$ 294.80
23	5304510121		Harness, Wiring, Main		Appelez-nous	-
27	5304510125		Console/handle Assy., W/overlay				$ 112.51
28	131205100		Screw, #8 Pan Head, 10-10b X 0.500, Cr/sq Drive			Immediately	$ 15.75
36	5304510127		Valve Assembly, Dispenser		Appelez-nous	-
37	134625700		Hose, Disp-to-tub			Immediately	$ 80.80
38	134372400		Clamp, Tub Hose				$ 71.66
39	5304510131		Housing Assembly, Dispenser, W/valve		Appelez-nous	-
40	134372103		Tube, Disp-to-overflo				$ 23.30
41	134372200		O-ring, Overflow Tube				$ 15.27
42	131168200		Screw, Pan Head, 8-18b X 0.31			Immediately	$ 15.75
44	134370200		Cover, Dispenser			Immediately	$ 45.68
45	5304510134		Drawer, Dispenser		Appelez-nous	-
50	134409320		Conveyor, Dispenser, Lower   (Replaces: 134370100)			Immediately	$ 424.70
NI	5304510090		Energy Guide		Appelez-nous	-
NIA	134407900		Dampener, Vibration				$ 18.90
NIA	134178901		Screw, 8-18ab X 0.455				$ 16.54
NIA	134629400		Screw, Mc5x8.5 Torx, Cabinet Mtg				$ 14.18
NIA	134371300		Gasket, Disp-to-valve			Immediately	$ 56.71
NIA	5304510114		Cable, Grounding, To Cabinet, Main Board				$ 19.76
