SELECT A DIAGRAM

01 - Cover Sheet

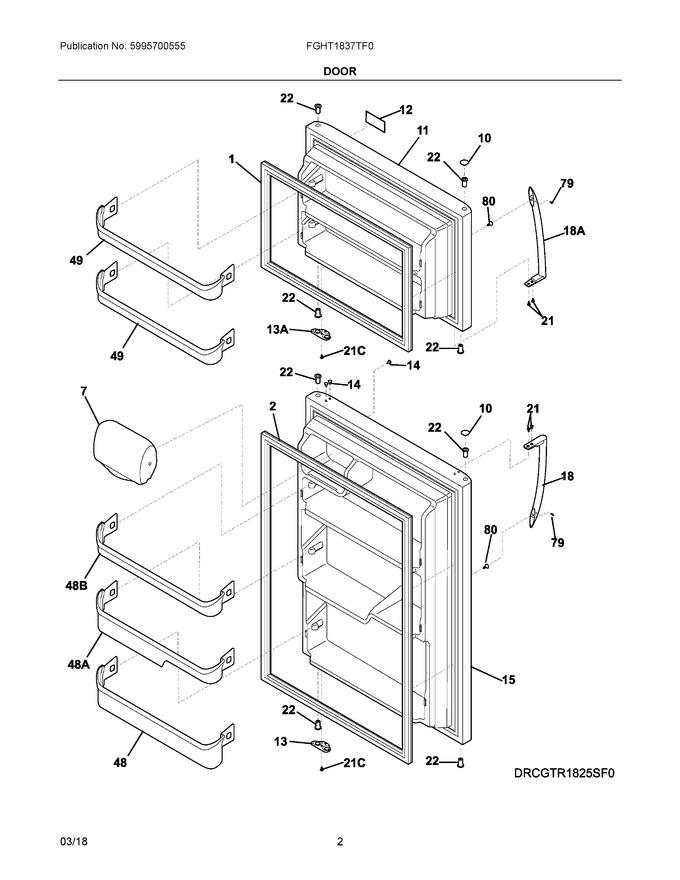

02 - Door


03 - Cabinet


04 - Shelves


05 - System


06 - Wiring Schematic


07 - Wiring Diagram


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	242193218		Gasket-frzr Door, Gray, Magnetic				$ 209.00
2	242193219		Gasket-refr Door, Gray, Magnetic			Immediately	$ 209.00
7	240337712		Door-dairy			Immediately	$ 40.45
10	240381307		Plug-button, Gray, Hinge Brg Hole, (2)			Immediately	$ 18.54
11	240410208		Door-frzr, Stainless, Complete Assy				$ 593.76
12	5304512150		Nameplate, Chrome			Immediately	$ 64.61
13	240312424		Door Stop, Gray, Ref   (Replaces: 240312420)				$ 16.01
14	240494007		Plug-button, Gray			Immediately	$ 17.69
15	242178101		Door-refr, Stainless, Complete Assy   (Replaces: 240410311)				$ 677.25
18	241977901		Handle-door, Stainless, Refr-rh/frzr-lh   (Replaces: 241977501)				$ 374.06
21	5304515677		Screw, Truss Hd Quad, #10-16 X .500, Zinc   (Replaces: 240383406)			Immediately	$ 21.37
22	5304507147		Bearing-hinge, Black, (8)			Immediately	$ 8.43
48	240338101		Bin-door			Immediately	$ 58.19
49	240495805		Bin-door, Pseudo, Frzr				$ 56.60
79	218755405		Screw-set, 10-32 X 0.500   (Replaces: 218755407)			Immediately	$ 22.84
80	218755504		Screw, Shoulder, #10-ab, Handle Mounting			Immediately	$ 20.67
13A	240312419		Door Stop, Gray, Frzr				$ 18.11
18A	241977901		Handle-door, Stainless, Refr-lh/frzr-rh   (Replaces: 241977502)				$ 374.06
21C	218252201		Screw, #8 Truss Hd, 10-32ca X 0.500			Immediately	$ 15.75
48A	240337901		Bin-door			Immediately	$ 57.92
48B	240338001		Bin-door			Immediately	$ 38.84
NIA	241601001		Wrench, Allen		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
