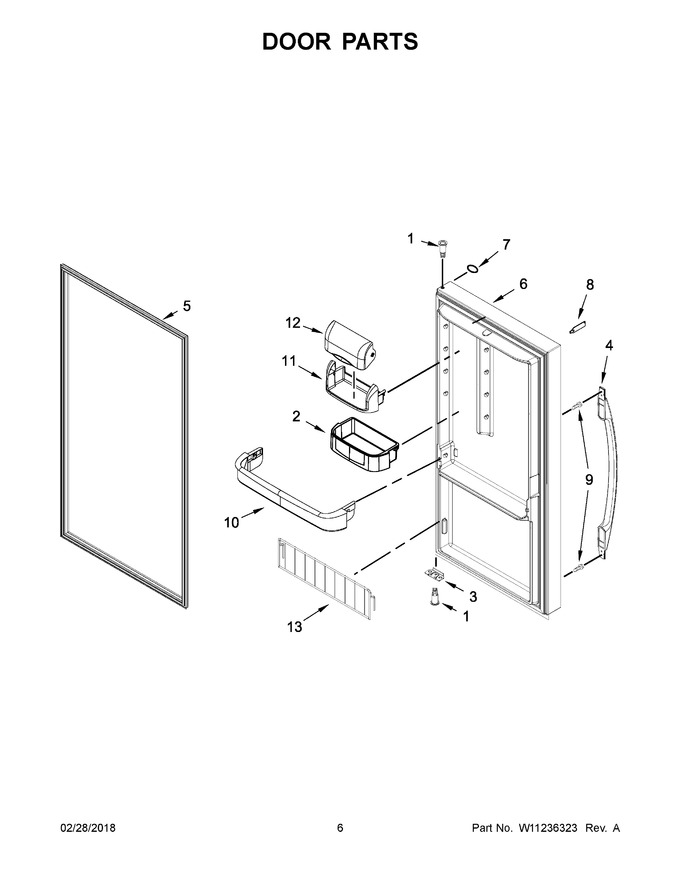

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2314293 | Thimble (Replaces: 2314293) |
|
$ 7.55 | |||||
| 2 | WPW10371194 | Bucket, Medium (Replaces: W10371194) |
|
Immediately | $ 77.23 | ||||
| 3 | W10628869 | Bracket, Door Stop |
|
$ 26.32 | |||||
| 4 | W10858385 | Handle, Door (white) (Replaces: W10612702) |
|
$ 249.07 | |||||
| 5 | W11672776 | Gasket, Door (white) (Replaces: W10733695) |
|
$ 244.88 | |||||
| 6 | W10747004 | Door Assembly (includes Lock) (white) (Replaces: W10574711) |
|
$ 1,394.37 | |||||
| 7 | W11178521 | Nameplate (white) (Replaces: W10481434) |
|
Immediately | $ 63.13 | ||||
| 8 | WP4356840 | Key (Replaces: 2-80060-106) |
|
$ 11.28 | |||||
| 9 | WPW10661886 | Screw (Replaces: W10460893) |
|
Immediately | $ 12.88 | ||||
| 10 | 67001019 | Retainer, Door (Replaces: 12557905) |
|
Immediately | $ 112.90 | ||||
| 11 | WP67001279 | Tray, Dairy (Replaces: 12369502) |
|
Immediately | $ 88.01 | ||||
| 12 | W10612074 | Lid |
|
$ 117.78 | |||||
| 13 | W10574731 | Door, Pizza Shelf |
|
$ 201.46 |
