Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 316953CG Oven Shell (el. W/lt) Appelez-nous -
2 Y0316949 Insulation, Rear Appelez-nous -
3 Y0316948 Insulation, Wrapper Appelez-nous -
4 Y0058852 Bracket, Oven Cavity Appelez-nous -
5 Y0316951 Smoke Eliminator, Tall Appelez-nous -
6 WP314763J Rack,oven 22 27/32`` X 15 7/16``   (Replaces: 314763J) Special Order $ 81.80

7 4396923 Grid, Broiler (cg)   (Replaces: 304451CG) In-Stock Immediately $ 60.71

8 4396923 Pan, Broiler (cg)   (Replaces: 314175CG) In-Stock Immediately $ 60.71

9 Y0067053 Clip, Thermo Capillary Appelez-nous -
10 Y0063351 Capillary Hole Cover Appelez-nous -
11 WP74011278 Assy, Oven Light   (Replaces: Y0314842) Special Order $ 118.48

12 Y0042175 Bulb, Light Appelez-nous -
13 WP77001094 Element, Bake (240v-2500w)   (Replaces: Y0059552) In-Stock Immediately $ 43.98

14 WP8203546 Terminal Block   (Replaces: Y0306378) In-Stock Immediately $ 30.13

15 Y0063532 Broil Element,3000 Watt Special Order $ 66.11

16 WPW10245259 Strap, Ground   (Replaces: Y0306379) In-Stock Immediately $ 35.17

17 0306381 Hex Nut No.10-32 Nickel Appelez-nous -
NI 31715801 Wire, Insulation Retainer 100`` Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

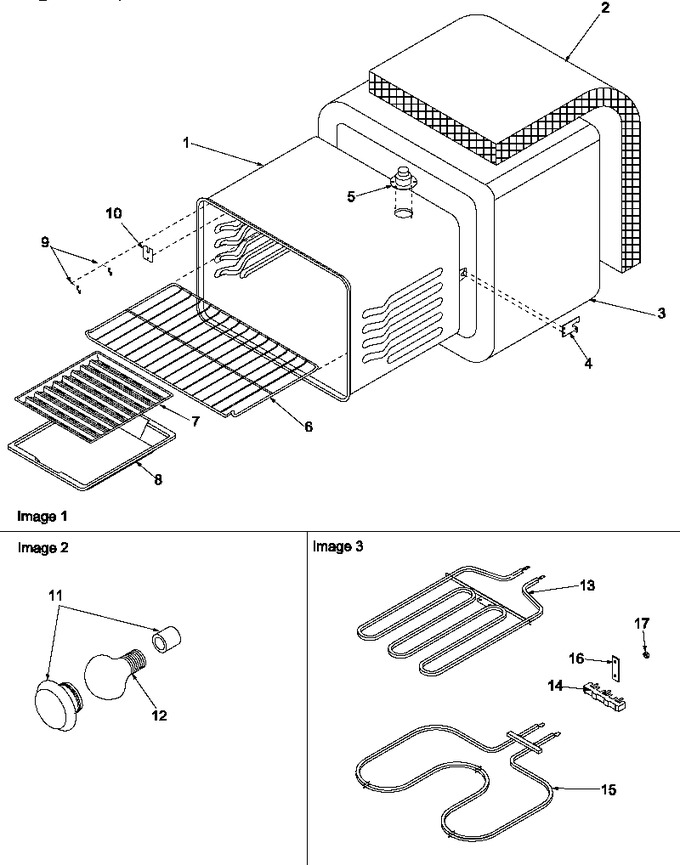

Diagram for ARR6200L (BOM: P1143440N L)
