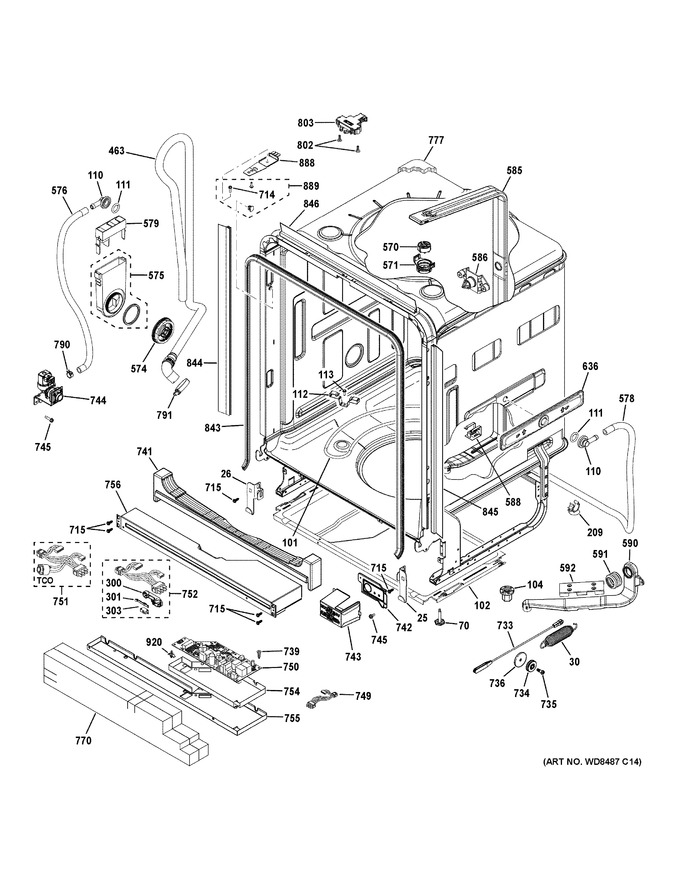

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 25 | WD01X23776 | Bracket Cable Rh |
|
- | |||||
| 26 | WD01X23777 | Bracket Cable Lh |
|
- | |||||
| 30 | WG04A02383 | Spring Door (Replaces: WD03X20446) |
|
Immediately | $ 15.72 | ||||
| 70 | WD12X23057 | Screw Leveling |
|
- | |||||
| 101 | WD05X23763 | Element Heating Asm |
|
- | |||||
| 102 | WD18X22842 | Pan Leak |
|
- | |||||
| 104 | WD01X10070 | Nut Tower Heater |
|
- | |||||
| 110 | WD22X20538 | Fill Elbow |
|
- | |||||
| 111 | WD08X22854 | Gasket Plug |
|
- | |||||
| 112 | WD01X20120 | Support Heater Ss |
|
- | |||||
| 113 | WG04A00176 | Screw 8-16 Hxw 1/2 Ss (Replaces: WD02X10067) |
|
$ 3.57 | |||||
| 209 | WD01X22855 | Clip Hose Side Blaster |
|
- | |||||
| 300 | WD01X23496 | Housing Switch Flood |
|
- | |||||
| 301 | WD16X23497 | Lever Switch Flood |
|
- | |||||
| 303 | WD21X23498 | Switch Flood |
|
- | |||||
| 463 | WD24X23016 | Hose Loop Drain High |
|
- | |||||
| 570 | WD22X20689 | Impeller |
|
- | |||||
| 571 | WD22X20688 | Hub |
|
- | |||||
| 574 | WD01X20738 | Nut Water Inlet |
|
- | |||||
| 575 | WG04A04294 | Funnel And Gasket Asm (Replaces: WD12X21322) |
|
Immediately | $ 50.11 | ||||
| 576 | WD24X10064 | Hose Fill |
|
- | |||||
| 578 | WD21X20339 | Hose Fill |
|
- | |||||
| 579 | WD12X20835 | Cap Fill Funnel |
|
- | |||||
| 585 | WD12X21681 | Conduit Main |
|
- | |||||
| 586 | WD12X20118 | Docking Port Ss |
|
- | |||||
| 588 | WD01X23982 | Clip Conduit |
|
- | |||||
| 590 | WD12X22862 | Conduit Silverware |
|
- | |||||
| 591 | WD01X22866 | Bellow Silverware |
|
- | |||||
| 592 | WD01X22864 | Shield Heat Conduit |
|
- | |||||
| 636 | WD22X21034 | Side Blaster Asm |
|
- | |||||
| 714 | WD02X10083 | Screw 8-18 B Hxw 480 S |
|
- | |||||
| 715 | WG04A02147 | Scr 10-32 Gx Hxw 3/8 (Replaces: WD02X10220) |
|
$ 3.57 | |||||
| 733 | WD01X22820 | Cable Asm Pulley |
|
- | |||||
| 734 | WD16X21836 | Pulley Hinge |
|
- | |||||
| 735 | WD01X21837 | Scr 10-32 Tt Cb 1/4 Zn |
|
- | |||||
| 736 | WD01X20593 | Friction Washer |
|
- | |||||
| 739 | WZ05X0158 | Screw 8-32x3/8 Grd Scr |
|
- | |||||
| 741 | WD01X23558 | Spacer Tub Front |
|
- | |||||
| 742 | WD12X10411 | Bracket Junction Box |
|
- | |||||
| 743 | WG04L01578 | Cover Junction Box (Replaces: WD12X10412) |
|
Immediately | $ 40.01 | ||||
| 744 | WD15X22948 | Valve Water Asm |
|
$ 32.78 | |||||
| 745 | WD01X22514 | Scr 10-32 Gx Ihxw 9/16 S |
|
- | |||||
| 749 | WD21X23559 | Harness Asm Jumper |
|
- | |||||
| 750 | WD21X23713 | Configured Machine Control |
|
- | |||||
| 751 | WD21X24536 | Harness Asm Ac |
|
- | |||||
| 752 | WD21X23561 | Harness Asm Dc |
|
- | |||||
| 754 | WD01X21974 | Shield Dielectric |
|
- | |||||
| 755 | WD30X21714 | Control Box Bottom |
|
- | |||||
| 756 | WD27X23178 | Control Box Top |
|
- | |||||
| 770 | WD01X23983 | Bag Insulation Asm |
|
- | |||||
| 777 | WD01X21156 | Insulation Tub |
|
- | |||||
| 790 | WD01X22786 | Clamp Hose |
|
- | |||||
| 791 | WD01X24246 | Clamp |
|
- | |||||
| 802 | WG03A00188 | Scr 8-18 Ab Tsq 5/8 Ss (Replaces: WR01X10380) |
|
$ 3.57 | |||||
| 803 | WG04F04726 | Latch Tub Side Standard (Replaces: WD21X10490) |
|
Immediately | $ 62.96 | ||||
| 843 | WD08X22095 | Gasket Tub Ss |
|
- | |||||
| 844 | WG04A05119 | Left Side Trim Tub (Replaces: WD08X20201) |
|
Immediately | $ 78.24 | ||||
| 845 | WD08X20199 | Right Side Trim Tub |
|
- | |||||
| 846 | WD08X20200 | Center Trim Tub |
|
- | |||||
| 888 | WD01X21740 | Bracket Countertop |
|
- | |||||
| 889 | WG04A01079 | Ct Screw Asm (Replaces: WD35X10383) |
|
Immediately | $ 30.02 | ||||
| 920 | WD01X21975 | Clip Control Board |
|
- |
