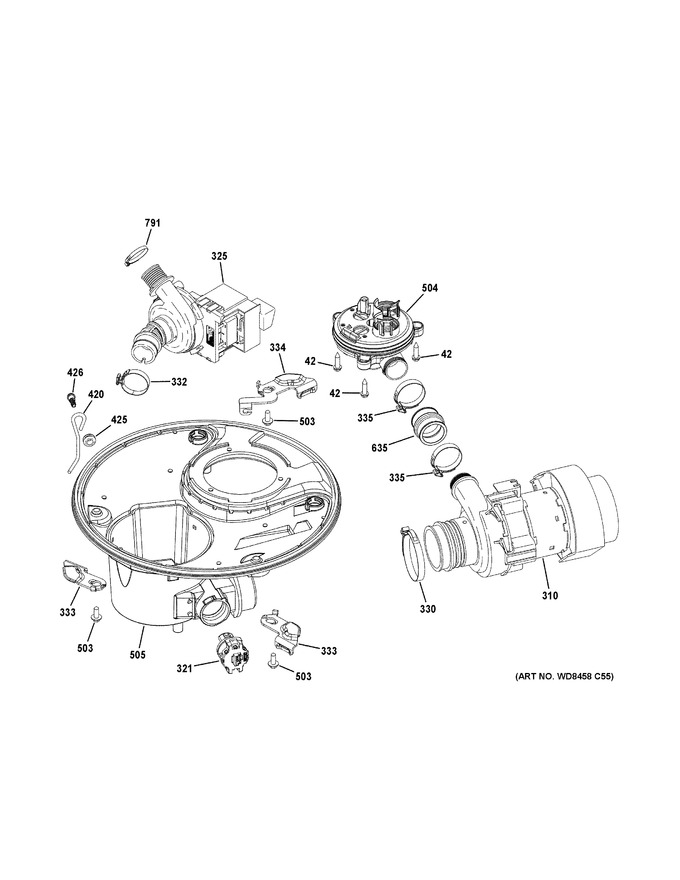

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
42	WD02X22736		Scr10 - 16 Ab Hxw 3/4 Ss		Appelez-nous	-
310	WD26X22826		Pump Wash Main Asm		Appelez-nous	-
321	WD21X22830		Sensor Turbidity Asm		Appelez-nous	-
325	WD19X24394		Drain Pump Asm		Appelez-nous	-
330	WG04A01134		Clamp   (Replaces: WD01X10571)			Immediately	$ 19.67
332	WD01X10573		Clamp		Appelez-nous	-
333	WD01X10632		Latch Cam		Appelez-nous	-
334	WD01X10575		Latch Cam		Appelez-nous	-
335	WD01X10572		Clamp		Appelez-nous	-
420	WD01X10579		Hanger Drain Pump		Appelez-nous	-
425	WD01X10101		Grommet		Appelez-nous	-
426	WD02X22781		Scr 10-18 X 5/8		Appelez-nous	-
503	WB01T10103		Scr 10-16 Ab Hxw .532		Appelez-nous	-
504	WD18X23220		Diverter Passive Asm		Appelez-nous	-
505	WD18X22782		Sump Manifold		Appelez-nous	-
635	WD24X22601		Hose Wash Pump Outlet		Appelez-nous	-
791	WD01X24246		Clamp		Appelez-nous	-
