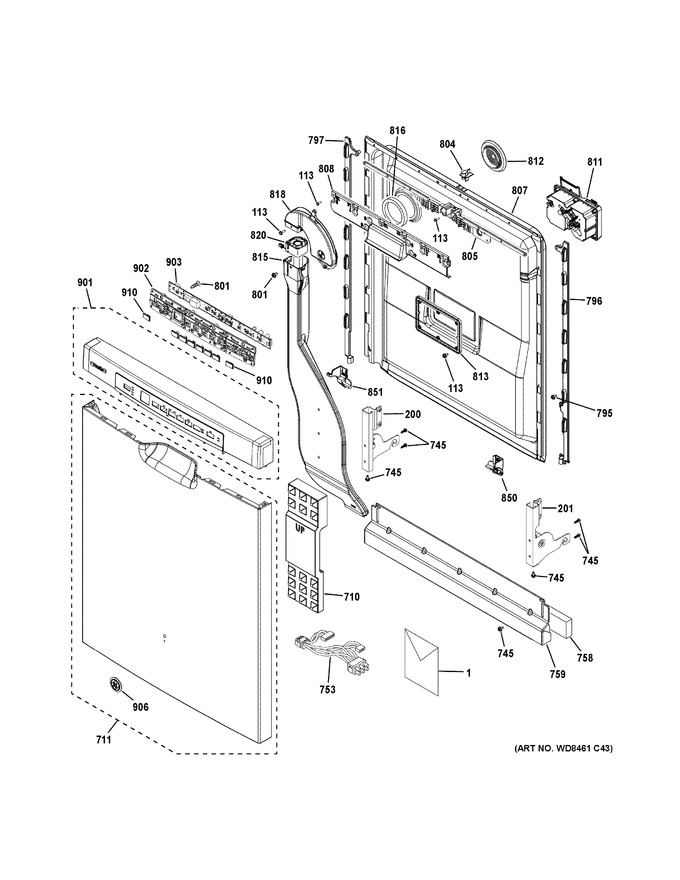

Escutcheon & Door Assembly
Lower Rack Assembly
Sump & Filter Assembly
Sump & Motor Mechanism
Upper Rack Assembly
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-30793 | Pm Mini-manual |
|
- | |||||
| 1 | 49-55101 | Pm Owners Manual |
|
- | |||||
| 1 | 31-31560 | Pm Install Instructions |
|
- | |||||
| 1 | 165D9739P032 | Insert Mini Manual |
|
- | |||||
| 113 | WG04A00176 | Screw 8-16 Hxw 1/2 Ss (Replaces: WD02X10067) |
|
$ 3.57 | |||||
| 200 | WD14X23739 | Arm Hinge Asm Lh |
|
- | |||||
| 201 | WD14X23738 | Arm Hinge Asm Rh |
|
- | |||||
| 710 | WD01X10585 | Block Foam Door |
|
- | |||||
| 711 | WD34X22557 | Door Outer Painted, Ww |
|
- | |||||
| 745 | WD01X22514 | Scr 10-32 Gx Ihxw 9/16 S |
|
- | |||||
| 753 | WD21X21664 | Harness Asm Door |
|
- | |||||
| 758 | WD27X21334 | Insulation Toe Kick |
|
- | |||||
| 759 | WD27X10393 | Toe Kick Painted Asm |
|
- | |||||
| 759 | WD27X10404 | Toe Kick Painted Asm |
|
- | |||||
| 780 | WD30X25140 | Inner Door Insulation |
|
- | |||||
| 795 | WD02X22628 | Screw T15 8-16 Plastite 60-1 |
|
- | |||||
| 796 | WD01X22836 | Attach Strip Rh |
|
- | |||||
| 797 | WG04A02187 | Attach Strip (Replaces: WD01X10634) |
|
$ 18.59 | |||||
| 801 | WB02T10324 | Scr 6-20 Gxb Ihxw 3/8 Ni |
|
- | |||||
| 804 | WG04F06693 | Striker Latch (Replaces: WD13X10071) |
|
Immediately | $ 8.58 | ||||
| 805 | WD13X22837 | Attachment Strip Top |
|
- | |||||
| 807 | WD31X22821 | Door Inner Ss |
|
- | |||||
| 808 | WD12X22787 | Pocket Handle |
|
- | |||||
| 811 | WD12X23539 | Detergent Disp No Sensor |
|
- | |||||
| 812 | WD24X20586 | Cover Vent |
|
- | |||||
| 813 | WD12X10462 | Plate Detergent |
|
- | |||||
| 815 | WD12X20218 | Vent Conduit Asm |
|
- | |||||
| 816 | WD08X23666 | Door Vent Seal |
|
- | |||||
| 818 | WD12X23557 | Transition Piece Asm |
|
- | |||||
| 820 | WG04F05895 | Vent Fan Asm (Replaces: WD24X20256) |
|
$ 66.75 | |||||
| 850 | WD12X22835 | Trim Door Rh |
|
- | |||||
| 851 | WD12X22834 | Trim Door Lh |
|
- | |||||
| 901 | WD34X22868 | Panel Control Asm Ww |
|
- | |||||
| 902 | WD12X22778 | Silicone Light Pipe |
|
- | |||||
| 903 | WD21X23699 | Configured Ui Control |
|
- | |||||
| 906 | WR04X29375 | Gea Badge Flat Chrome |
|
- | |||||
| 910 | WD09X21687 | 8 Button Tree |
|
- |
