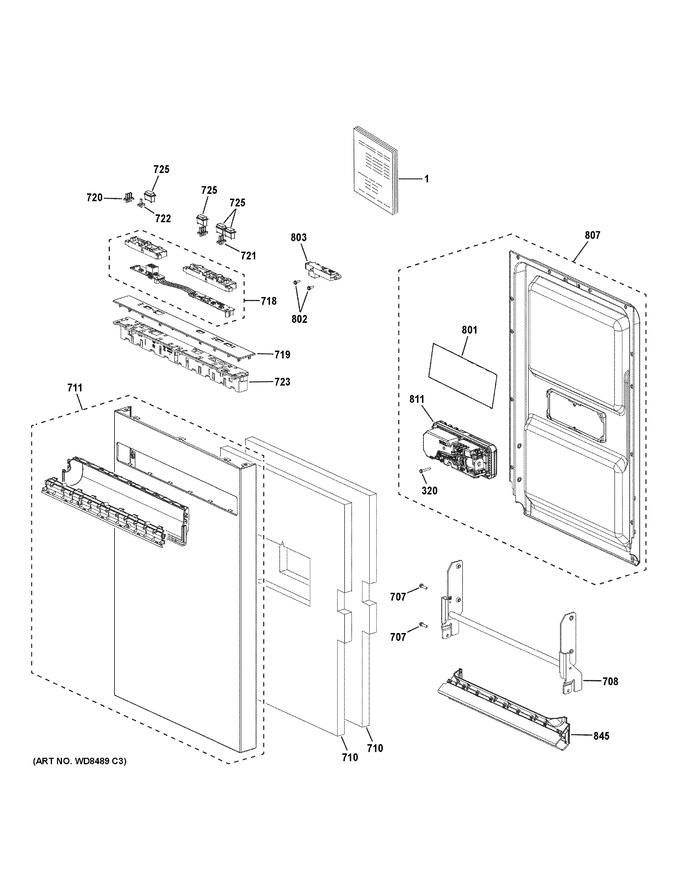

Escutcheon & Door Assembly
Motor-pump Mechanism
Rack Assemblies
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-31575 | Pm Install Instructions |
|
- | |||||
| 1 | 31-30895 | Pm Mini-manual |
|
- | |||||
| 1 | 49-55107 | Pm Owners Manual |
|
- | |||||
| 1 | 31-30815 | Pm Mini Manual |
|
- | |||||
| 1 | 49-55110 | Pm Quick Start Guide |
|
- | |||||
| 1 | 49-55124 | Pm Owners Manual |
|
- | |||||
| 1 | 31-31590 | Pm Install Instructions |
|
- | |||||
| 1 | 31-4000247 | Pm Install Instructions |
|
- | |||||
| 1 | 31-4000295 | Printed Onlymini Manual And Wiring |
|
- | |||||
| 320 | WD02X24690 | Screw |
|
- | |||||
| 322 | WD02X27558 | Screw |
|
- | |||||
| 702 | WD02X29939 | Hinge Pin |
|
- | |||||
| 703 | WD02X29938 | Retainer Clip |
|
- | |||||
| 707 | WD02X24689 | Screw Door Brace |
|
- | |||||
| 708 | WD27X24639 | Door Brace |
|
- | |||||
| 710 | WD01X24642 | Door Insulation |
|
- | |||||
| 711 | WD27X24686 | Outer Door Panel Asm Ss Profile |
|
- | |||||
| 718 | WD21X24701 | Ui Control Asm |
|
- | |||||
| 719 | WD34X24629 | Console Cover Ss |
|
- | |||||
| 720 | WD21X24669 | Light Pipe 3 |
|
- | |||||
| 721 | WD21X24668 | Light Pipe 2 |
|
- | |||||
| 722 | WD21X24667 | Light Pipe 1 |
|
- | |||||
| 723 | WD12X24625 | Console |
|
- | |||||
| 725 | WD09X24601 | Buttons Dorian Grey |
|
- | |||||
| 801 | WD31X24638 | Detergent Module Cover |
|
- | |||||
| 802 | WD02X24697 | Screw Latch Assembly |
|
- | |||||
| 803 | WD12X24644 | Door Latch |
|
- | |||||
| 807 | WD31X24664 | Inner Door Assembly |
|
- | |||||
| 811 | WD12X24637 | Detergent Module |
|
- | |||||
| 845 | WD08X24623 | Beach Gasket Asm |
|
- |
