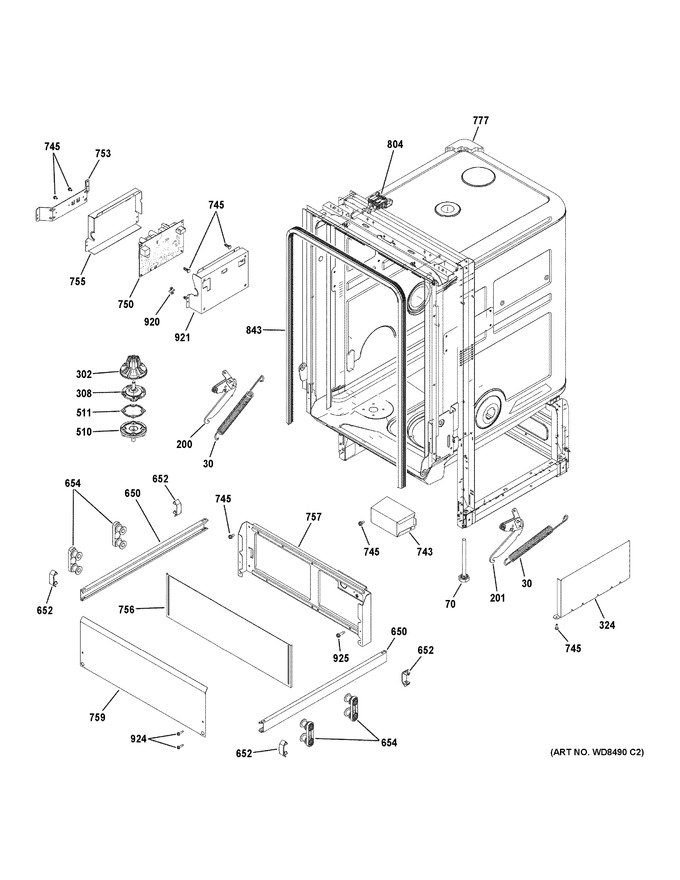

Body Parts
Escutcheon & Door Assembly
Motor-pump Mechanism
Rack Assemblies
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 30 | WD02X24646 | Door Spring |
|
- | |||||
| 70 | WD02X24666 | Leveling Screw |
|
- | |||||
| 200 | WD01X24618 | Hinge Mechanism Lh |
|
- | |||||
| 201 | WD01X24621 | Hinge Mechanism Rh |
|
- | |||||
| 302 | WD12X24658 | Flood Float Cover |
|
- | |||||
| 308 | WD12X24657 | Flood Float & Switch Asm |
|
- | |||||
| 324 | WD01X24708 | Wash Pump Shield |
|
- | |||||
| 510 | WD12X24659 | Flood Float Stem |
|
- | |||||
| 511 | WD08X24660 | Flood Float Stem Gasket |
|
- | |||||
| 650 | WD30X24725 | Upper Rack Slide |
|
- | |||||
| 652 | WD12X24354 | Rack Slide End Cap |
|
$ 14.99 | |||||
| 654 | WD30X24688 | Rack Slide Support |
|
- | |||||
| 743 | WD01X24665 | Junction Box Cover |
|
- | |||||
| 745 | WD02X24609 | Screw |
|
- | |||||
| 750 | WD21X24676 | Main Control Board |
|
- | |||||
| 753 | WD01X24634 | Control Box Bracket |
|
- | |||||
| 755 | WD01X24635 | Control Box Front |
|
- | |||||
| 756 | WD27X24596 | Adjustable Toe Kick Black |
|
- | |||||
| 757 | WD30X24612 | Front Frame Brace |
|
- | |||||
| 758 | WD30X27298 | Toe Kick Insulation |
|
- | |||||
| 759 | WD27X24613 | Toe Kick Black |
|
- | |||||
| 777 | WD30X24699 | Tub Insulation Blanket |
|
- | |||||
| 804 | WD12X24648 | Door Striker Asm |
|
- | |||||
| 843 | WD08X24724 | Tub Gasket |
|
- | |||||
| 920 | WD02X24632 | Control Board Clip |
|
- | |||||
| 921 | WD01X24633 | Control Box Back |
|
- | |||||
| 924 | WD02X24608 | Screw |
|
- | |||||
| 925 | WD02X24614 | Screw Ground |
|
- | |||||
| 998 | WD02X25399 | 18" Mounting Brackets Kit |
|
$ 20.45 |
