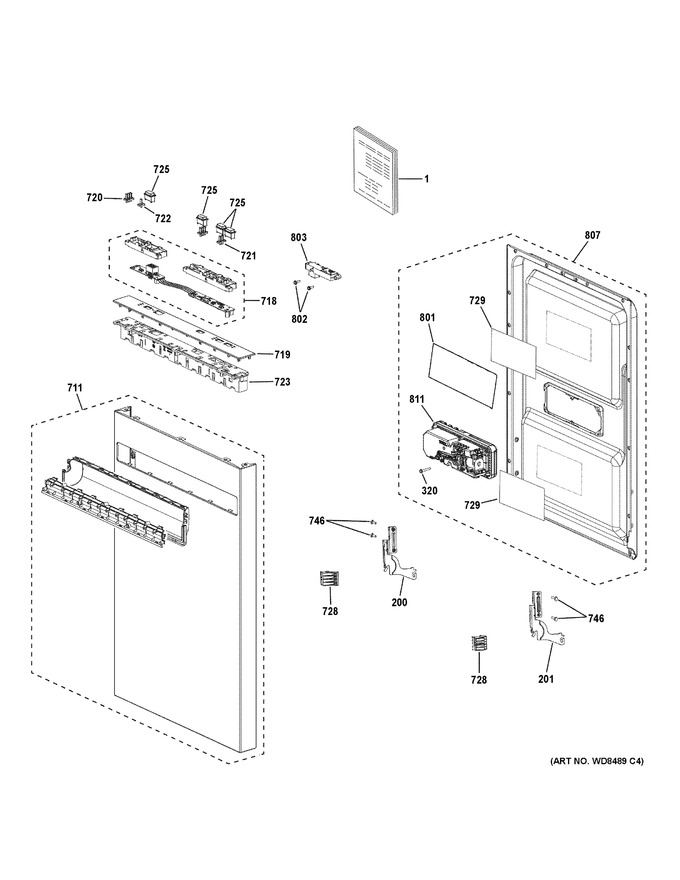

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 31-30895 | Pm Mini-manual |
|
- | |||||
| 1 | 31-31590 | Pm Install Instructions |
|
- | |||||
| 1 | 49-55110 | Pm Quick Start Guide |
|
- | |||||
| 1 | 49-55124 | Pm Owners Manual |
|
- | |||||
| 1 | 49-55107 | Pm Owners Manual |
|
- | |||||
| 1 | 31-30815 | Pm Mini Manual |
|
- | |||||
| 1 | 31-31575 | Pm Install Instructions |
|
- | |||||
| 200 | WD01X24738 | Hinge Mechanism Lh |
|
- | |||||
| 201 | WD01X24739 | Hinge Mechanism Rh |
|
- | |||||
| 320 | WD02X24690 | Screw |
|
- | |||||
| 711 | WD27X24743 | Outer Door Panel Asm Gdt Bb |
|
- | |||||
| 718 | WD21X24701 | Ui Control Asm |
|
- | |||||
| 719 | WD34X24731 | Console Cover Gdt Bb |
|
- | |||||
| 720 | WD21X24669 | Light Pipe 3 |
|
- | |||||
| 721 | WD21X24668 | Light Pipe 2 |
|
- | |||||
| 722 | WD21X24667 | Light Pipe 1 |
|
- | |||||
| 723 | WD12X24730 | Console |
|
- | |||||
| 725 | WD09X24600 | Buttons Black |
|
- | |||||
| 728 | WD01X24735 | Door Supporting Block |
|
- | |||||
| 729 | WD01X25807 | Door Supporting Foam |
|
- | |||||
| 729 | WD01X24736 | Door Supporting Foam |
|
- | |||||
| 746 | WD02X24617 | Screw Water Valve |
|
- | |||||
| 801 | WD31X24638 | Detergent Module Cover |
|
- | |||||
| 802 | WD02X24697 | Screw Latch Assembly |
|
- | |||||
| 803 | WD12X24644 | Door Latch |
|
- | |||||
| 807 | WD31X24740 | Inner Door Asm |
|
- | |||||
| 811 | WD12X24637 | Detergent Module |
|
- |
