01 - Frame And Console, Literature
02 - Inner Door
03 - Tub Assembly
04 - Pump And Sprayarm
05 - Pump And Motor
06 - Dishrack
07 - Miscellaneous, Optional
08 - Cabinet
SELECT A DIAGRAM
New Model Search:

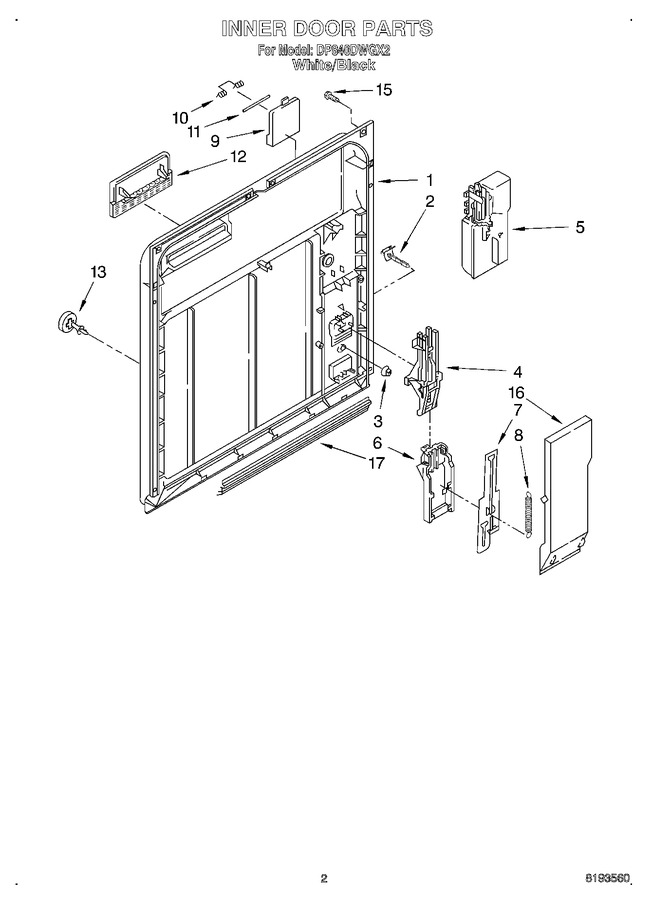

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 676413 | Latch Door Kit |
|
Immediately | $ 9.23 | ||||
| 1 | WP8528310 | Inner Door (also Order) (Replaces: 3369054) |
|
Immediately | $ 307.03 | ||||
| 2 | 676413 | Latch, Detergent Dispenser (Replaces: 3376066) |
|
Immediately | $ 9.23 | ||||
| 3 | 676413 | Snap, Detergent Dispenser (Replaces: 3369061) |
|
Immediately | $ 9.23 | ||||
| 4 | 8193646 | Actuator Assembly (Replaces: 3369055) |
|
$ 109.67 | |||||
| 5 | WP8052027 | Wet Agent, Dispenser (Replaces: 8052027) |
|
$ 131.42 | |||||
| 6 | 3369000 | Draw Bar, (upper Dispenser) |
|
$ 5.70 | |||||
| 7 | 8193646 | Draw Bar (lower Dispenser) (Replaces: 3369602) |
|
$ 109.67 | |||||
| 8 | WP3368999 | Spring (draw Bar) (Replaces: 3368999) |
|
Immediately | $ 8.87 | ||||
| 9 | WP3378138 | Lid Assembly (Replaces: 3385001) |
|
Immediately | $ 26.10 | ||||
| 10 | WP8066018 | Spring, Lid (Replaces: 300106) |
|
Immediately | $ 8.74 | ||||
| 11 | WP3372028 | Pin (lid Hinge) (Replaces: 3372028) |
|
Immediately | $ 11.15 | ||||
| 12 | WP3371710 | Screen, Vent (Replaces: 3371710) |
|
$ 8.32 | |||||
| 13 | WP3378134 | Cap, Wet Agent (Replaces: 3378134) |
|
Immediately | $ 8.63 | ||||
| 15 | WPW10348413 | Screw (8) (Replaces: 3400815) |
|
Immediately | $ 8.41 | ||||
| 16 | 3371569 | Cover, Drip |
|
$ 46.59 | |||||
| 17 | 3369479 | Spatter Shield |
|
- |
